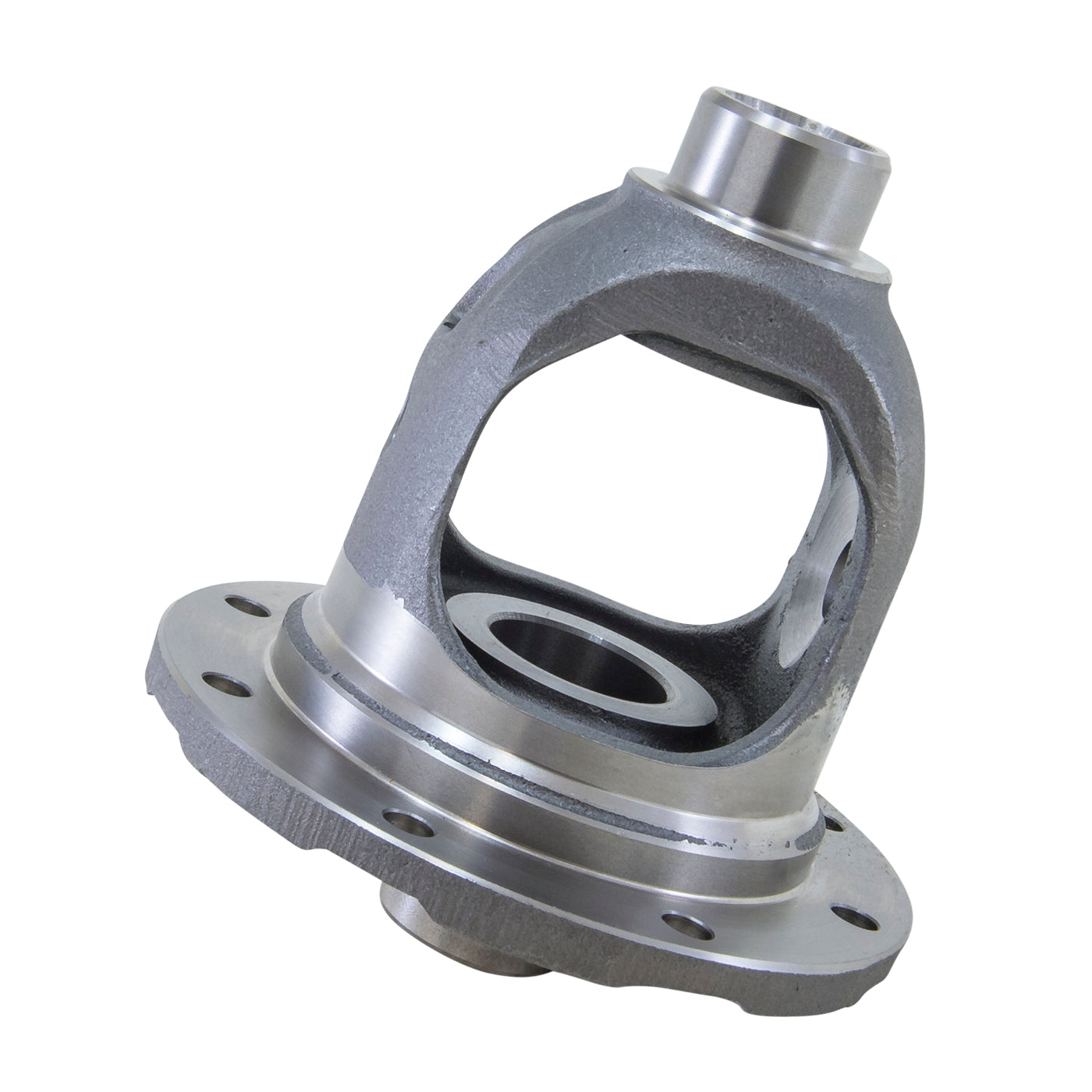

Yukon Gear & Axle Standard Open Carrier Case Amc Model 35 3.55 & Up M3
Model 35 3.55 & up + 3.27, standard Open case, BLT, 1.560 inch side gear hub Bore, 1-5/8 inch tall. Yukon Gear & Axle manufactures a full line of standard open and positraction limited slip carrier cases for a variety of applications.
Each unit is cast and machined to exacting specifications to produce a carrier that provides both high strength and tight tolerances for a long and reliable service life.
Features:
Standard open carrier case Fits AMC Model 35 3.54 ratio and up only Does not include spider gears 1.560 inch side gear bore
Details:
Late model AMC 35's use a 7/16 inch ring gear bolt. This carrier uses 3/8 inch bolts.
To use this gear set with a factory gear set that uses 7/16 inch bolts you will need to ream the ring gear bolt holes out or purchase a gear set that uses 3/8 inch bolts.
Fitment Notes:
