Yukon Gear & Axle Chromoly Super Joint Single For Dana 30 Dana 44 And
Yukon Super Joint for GM 8.5 inch, Dana 30 & Dana 44. One single joint. Yukon Super Joints offer an upgrade in strength over factory u-joints and excel in extreme off-road applications.
Designed for Dana 60, Dana 44, Dana 30, and GM 8.5 differentials, Yukon Super Joints feature a 4340 chromoly cross and caps made from 4140 steel to isolate the wear to the caps not the cross because its a lot more convenient and less expensive to replace the caps. The end of each trunnion is home to a reservoir for the grease.
Youll notice the trunnion is larger in circumference and therefor considerably stronger than to conventional u-joints. This is because the Super Joint design eliminates the needle bearings.
The trade-off is these joints require frequent maintenance as sealed needle bearings contain their grease for a lifetime and Super Joints require regreasing, so we do not recommend installing them in daily driven vehicles.
Features:

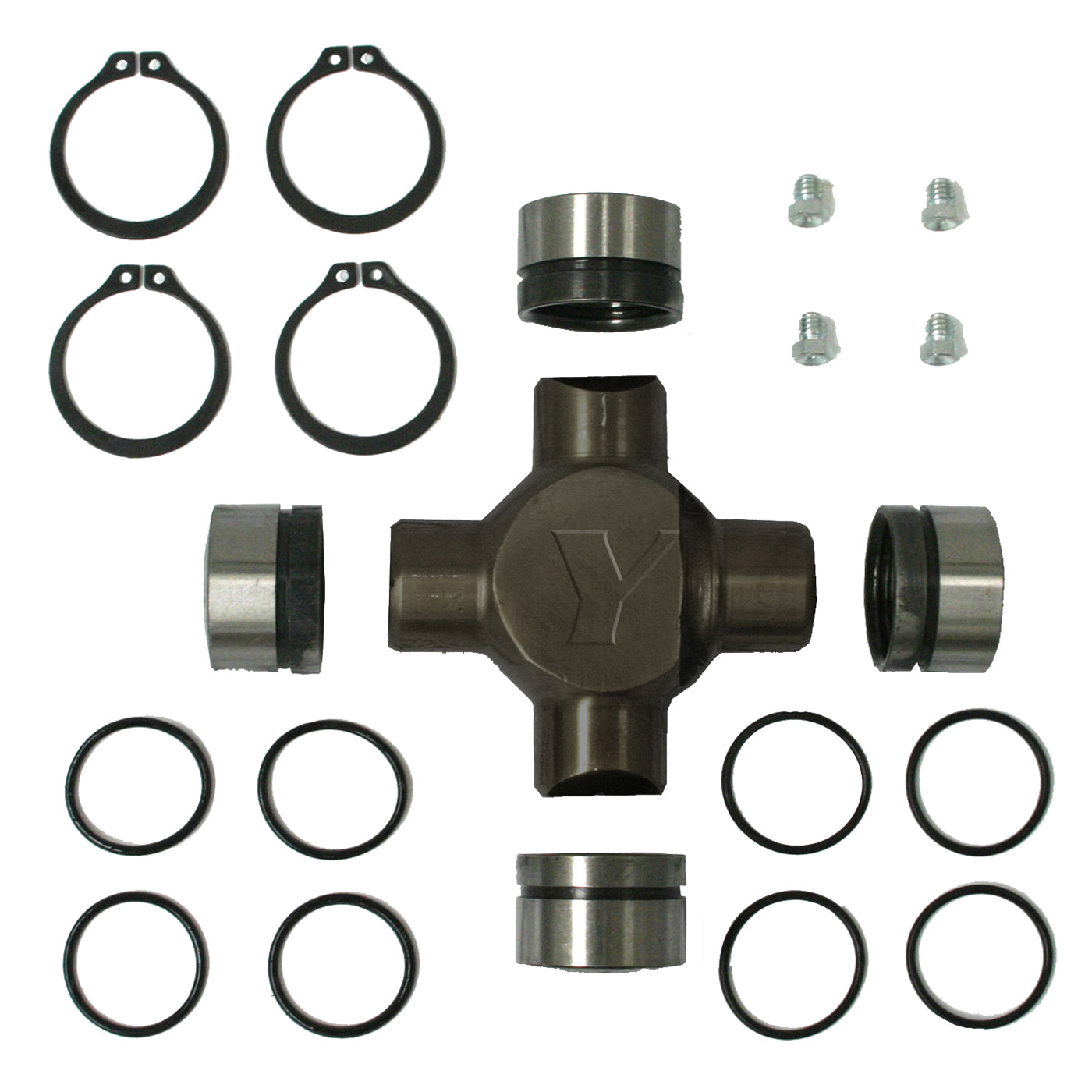

Fits Dana 30, Dana 44, and GM 8.5 inch front differentials Includes one complete joints and four full circle snap rings Not recommended for daily driven use Uses ultra-high grade anti-seize for lubrication Design eliminates needle bearings resulting in larger trunnion for added strength Features stout 4340 chromoly cross
Details:
Fitment Notes:
