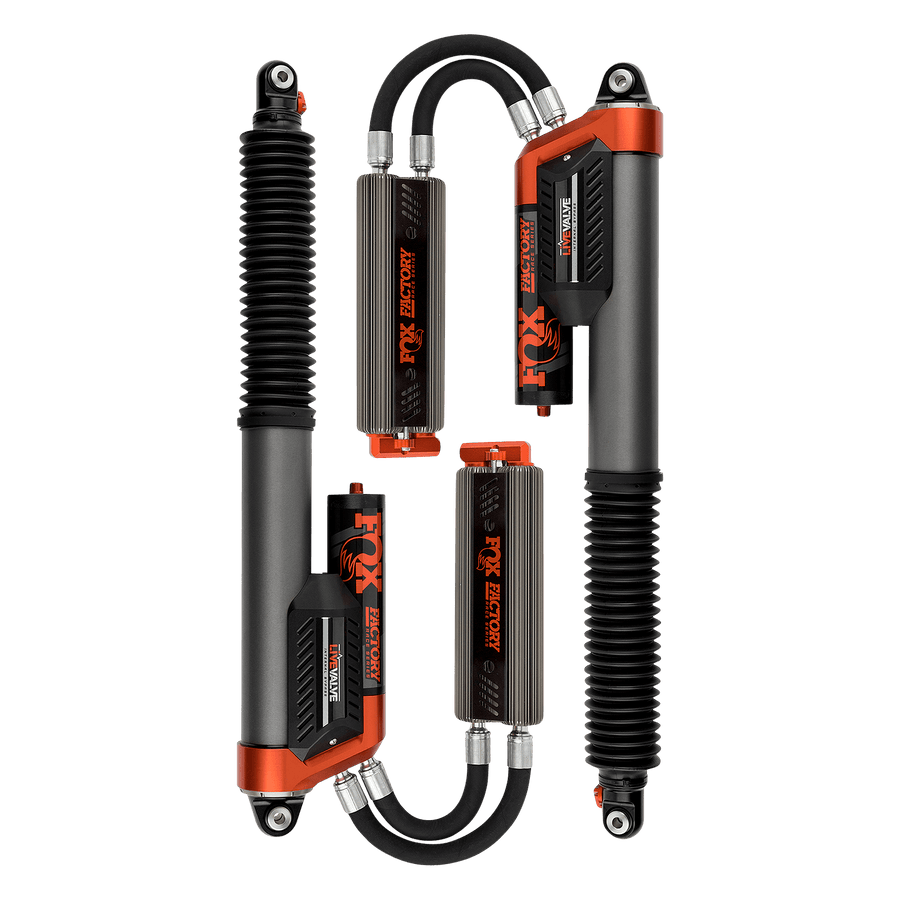

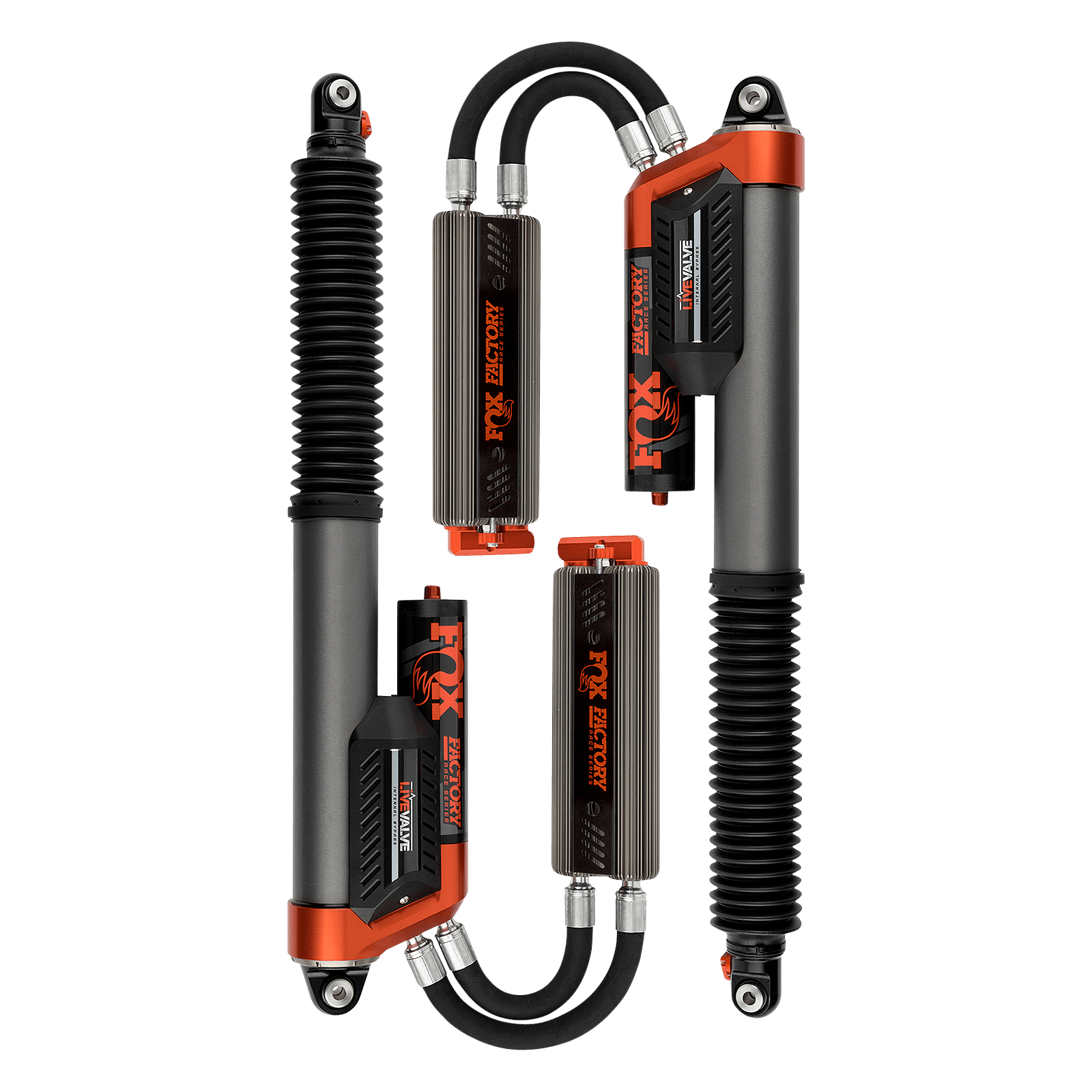

Fox Factory 19-Up Ford Raptor Rear Live Valve Internal Bypass Factory

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance.

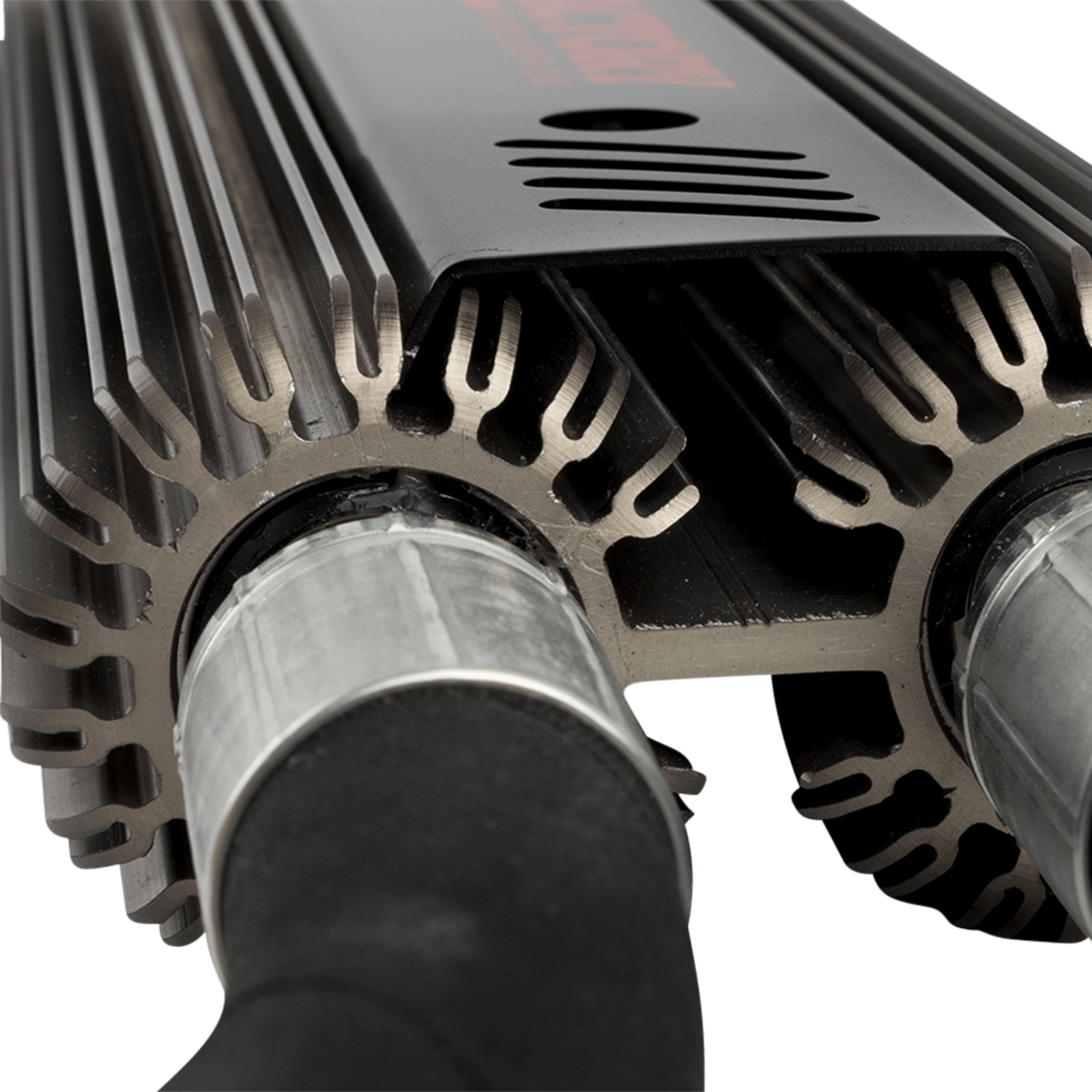

Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

Live Valve semi active technology equipped, plug and play integration to factory electronics
Rebound and compression adjustable via Quick Switch Technology (QS3)
Rotatable hose fittings for easy installation
FOX patented, position-sensitive Internal Bypass damping technology
Features

• Performance Tuned Specifically For Raptor, Finned External Reservoir System Dissipates Heat Fast, Quick Switch Compression And Rebound Adjusters, Live Valve Terrain Adaptive Technology, Black Anodized CNC Machined Aluminum Components
• Series Factory Race
• Travel 12.19
• Rear Lift Height 0-1
• Body 3.0 Inch impact extruded and CNC machined 6061-T6 hard-anodized aluminum Body resists corrosion and weighs less than steel
• Body Plating Hard-anodized for a durable finish
• Components Anodized, CNC-machined 6061-T6 billet aluminum
• Shaft 7/8 Inch hard chrome plated 17-4 H900 stainless steel
• Piston Hard anodized 6061-T6 billet aluminum high flow race Piston
• Valving Application-specific Valving to maximize performance
• Seals Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
• Bearings PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
• Extended Length 31.18
• Compressed Length 18.99
• Top Mount Eyelet
• Bottom Mount Eyelet
• Fitment Notes External Cooling System (ECS2) Mounting Hardware Included
