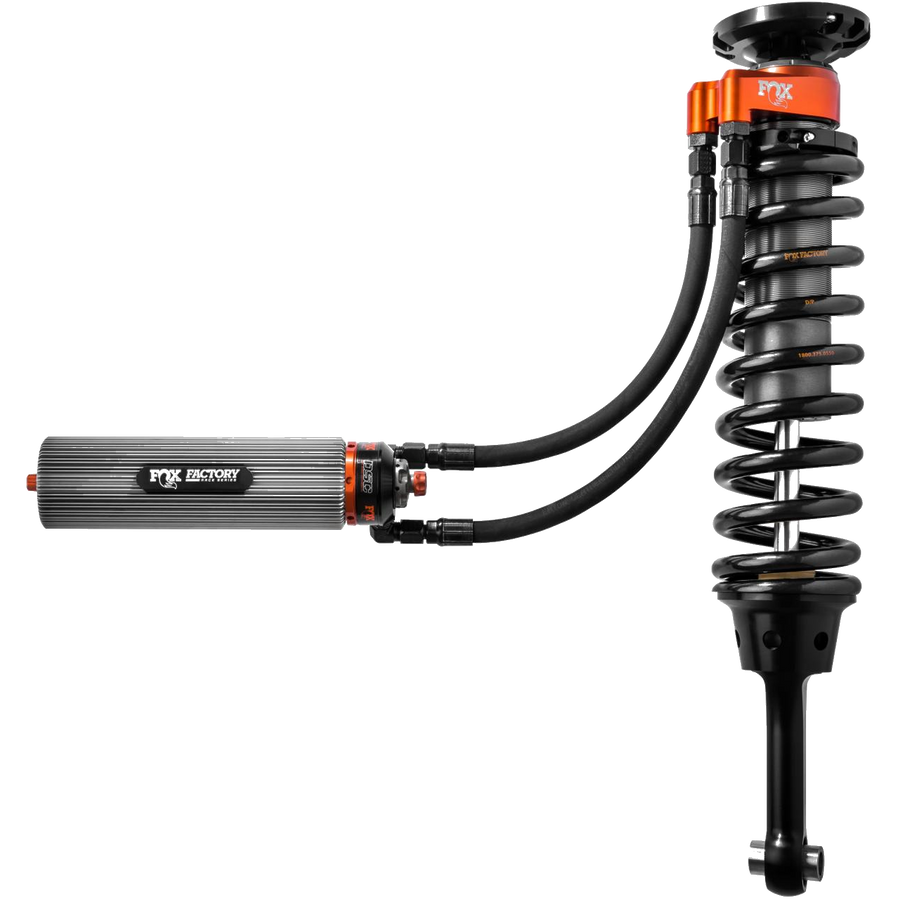

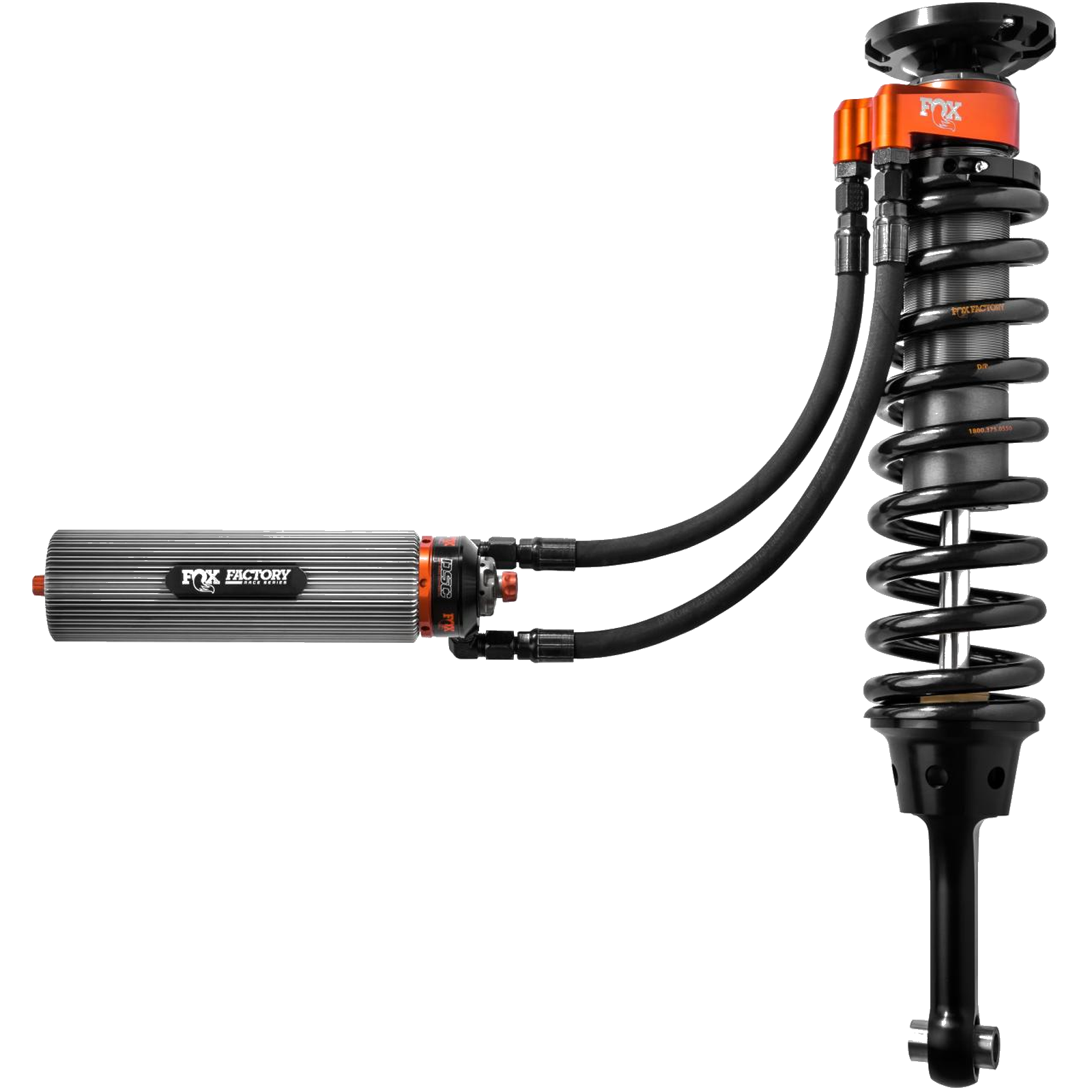

Take your Gen 2 Raptor to the next level with this Factory Race Series front upgrade kit, designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote Reservoir.
This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.
Features
- Performance Tuned For Vehicle Specific Application, Durable Zinc Plated Seamless Alloy Body, External Reservoir System Dissipates Heat Fast, Black Anodized CNC Machined Aluminum Components
- Series Factory Race
- Travel 7.85
- Front Lift Height 0-2
- Body 3.0 Inch Hard anodized aluminum
- Body Plating NEW, hard anodized extruded aluminum finned remote Reservoir with NEW Recirculating Reservoir Bridge
- Reservoir 3.75 Inch racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
- Components 3.75 Inch racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
- Shaft 7/8 Inch 17-4 H900 hard chrome plated stainless steel
- Piston Hard anodized 6061-T6 billet aluminum high flow race Piston
- Valving Specific for Gen 2 Raptor to maximize performance and comfort
- Bearings Spherical, PFTE-lined, heat-treated steel
- Extended Length 28.45
- Compressed Length 20.6
- Top Mount TM
- Bottom Mount Eyelet
