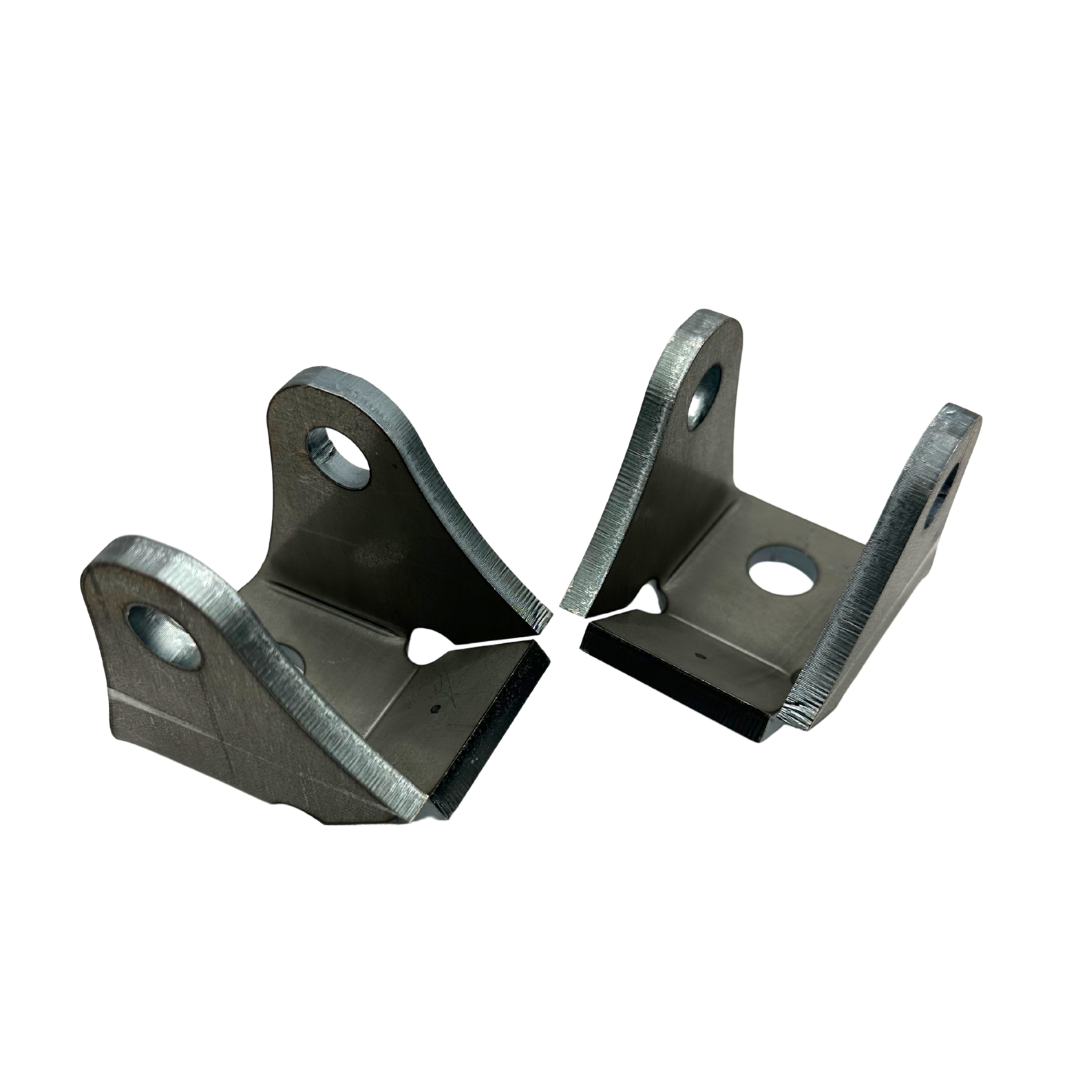

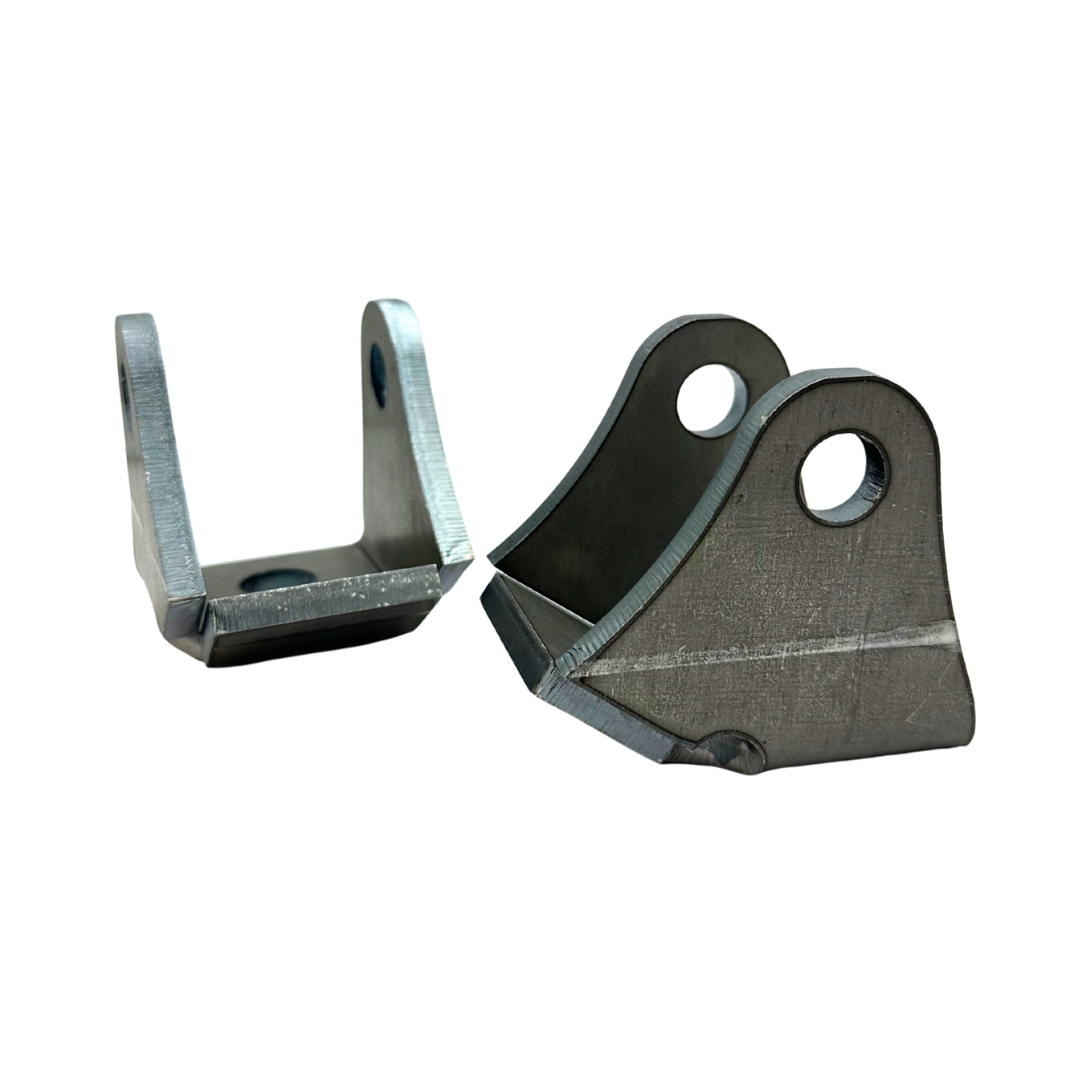

Ford Super Duty 2005+ ORI Strut Shock Mount Brackets

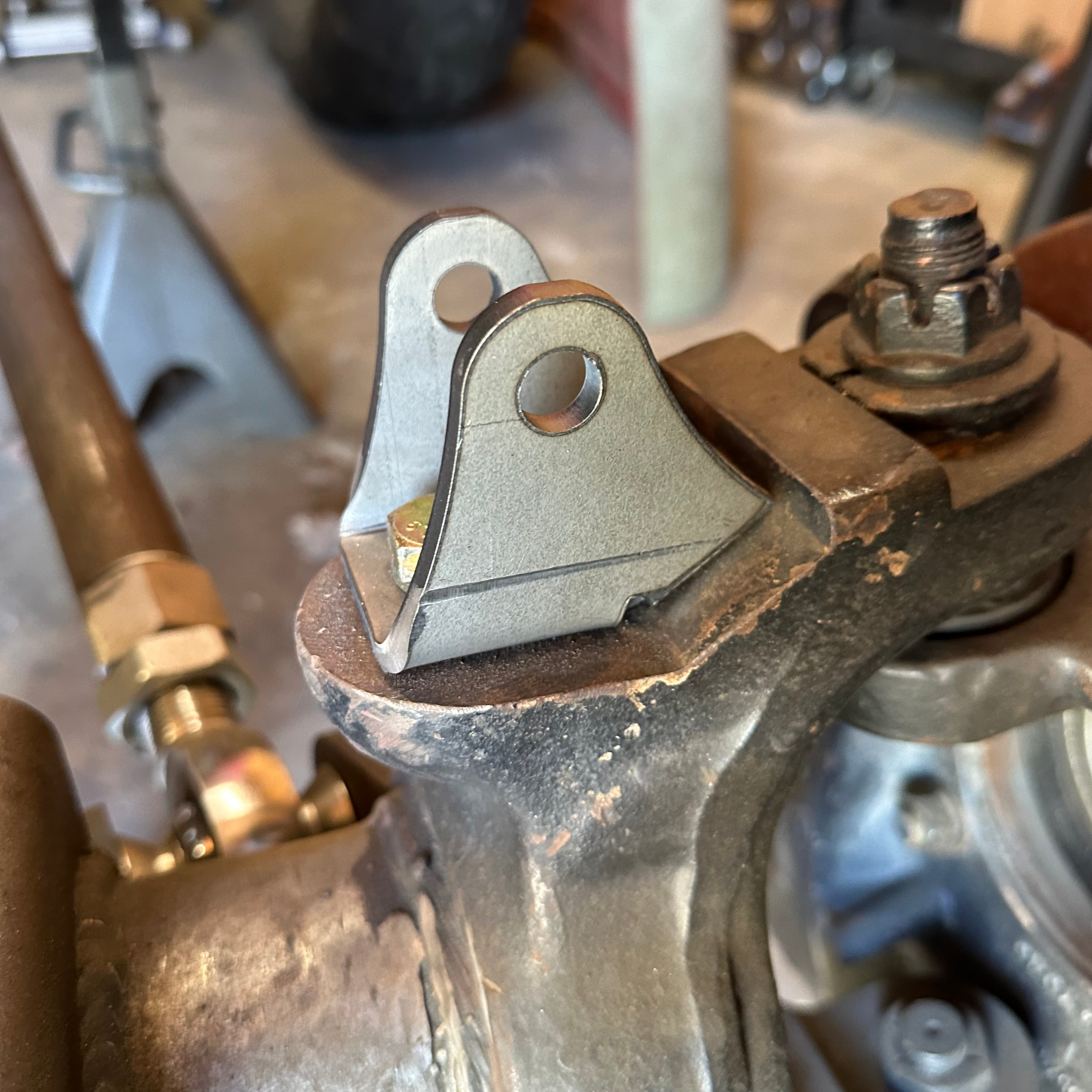

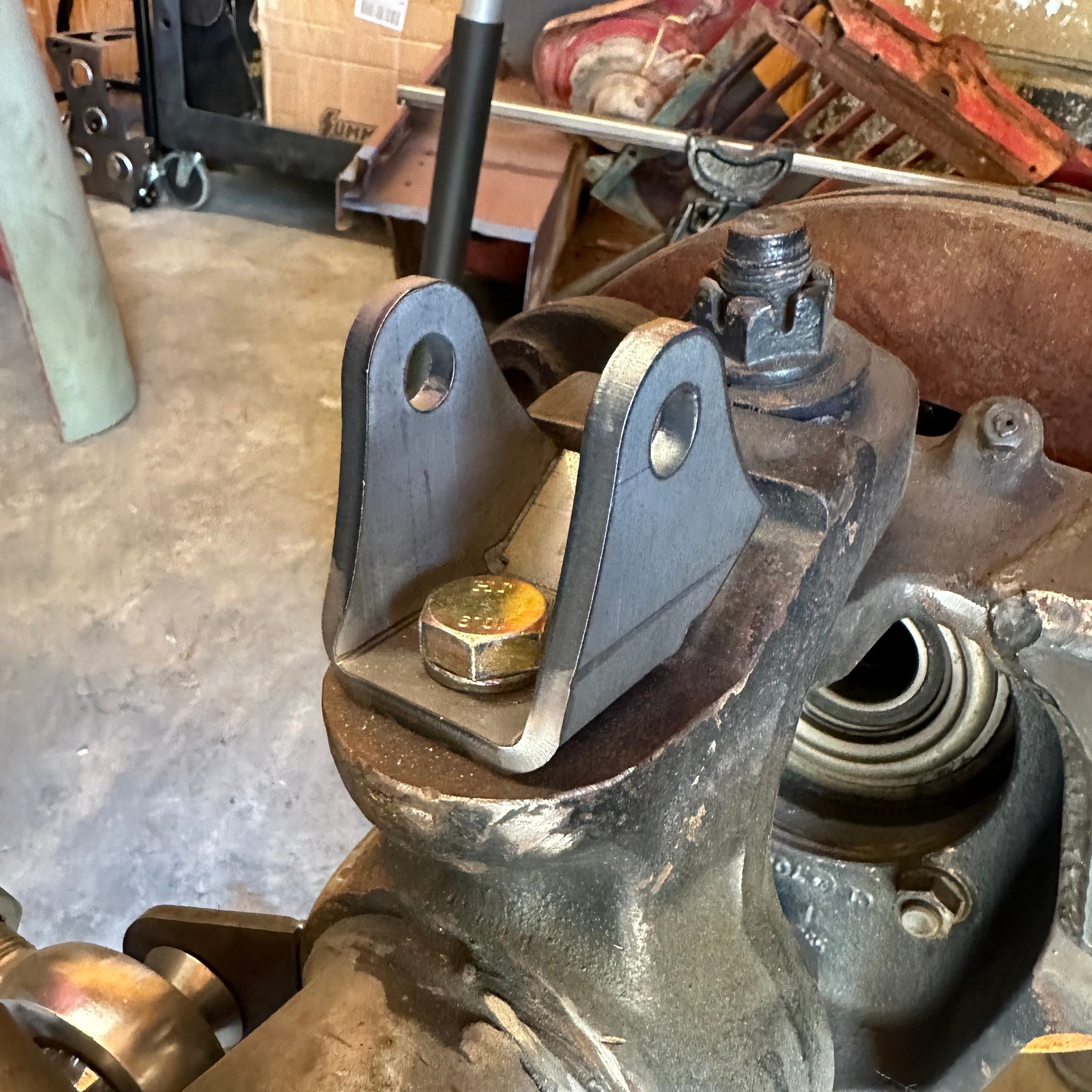

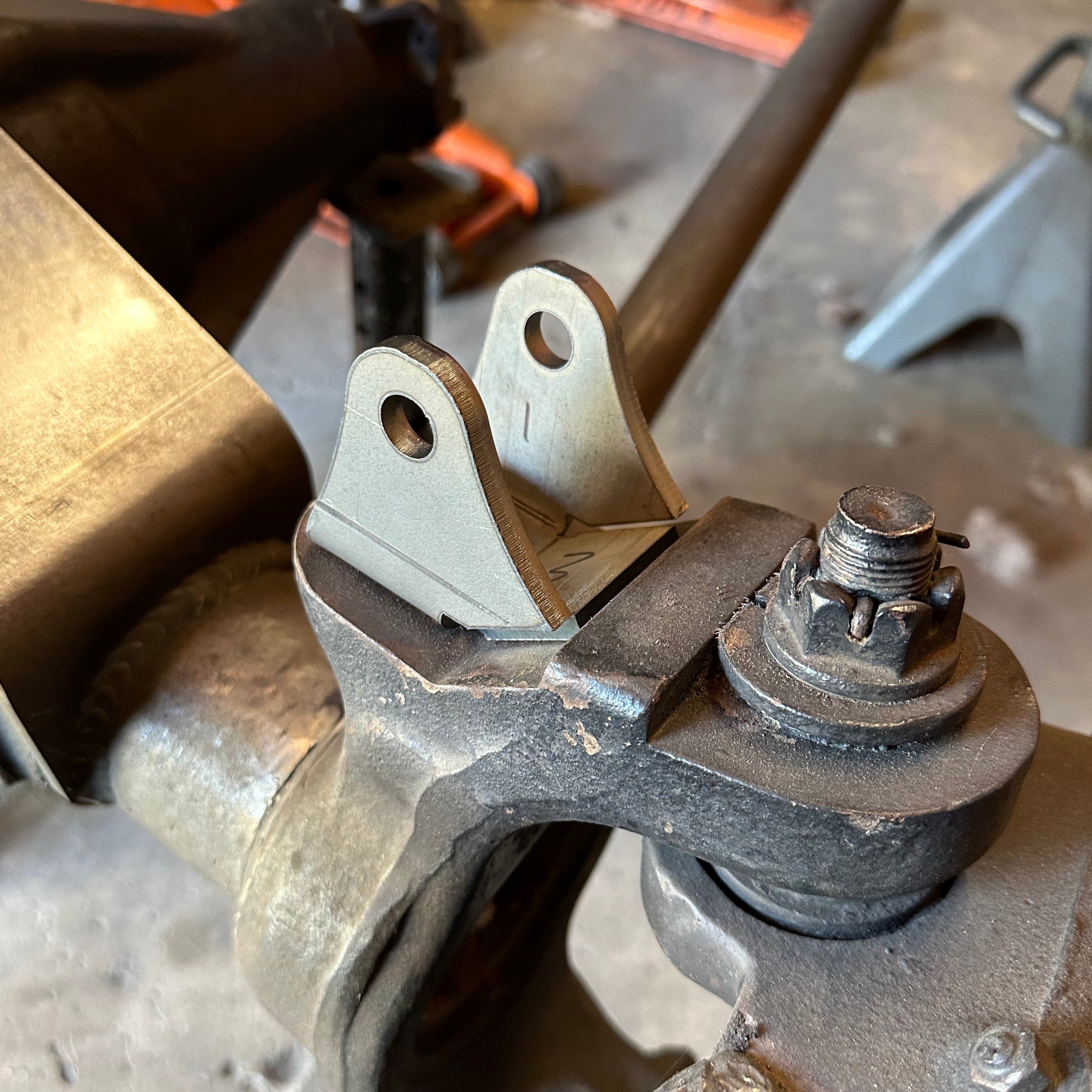

These brackets were engineered specifically to solve a well-known issue on the 2005+ Ford Super Duty Dana 60: there’s almost no tube real estate on the driver side for mounting shocks or coilovers. Because Ford uses a single bolt to secure the factory coil spring perch to the inner C, traditional mounting options become tight fast. Our weld-on shock brackets are built to eliminate that headache entirely.
Ideal for rigs running 6"+ of lift, the 05+ Dana 60 has become a go-to swap for everything from Jeeps to Duramax platforms thanks to its stout ball joints and noticeably better road manners compared to older kingpin designs. Each bracket is laser-cut from 1/4-inch steel, built for ORI Struts with a 1.625" mounting width, and can be shimmed to fit standard coilovers using simple spacers. Sold in pairs and includes Grade 8 hardware for a secure install.
FEATURES:
You can write any text to be displayed either here if you want it to show on all products or create a custom metafield for products where you can add text information specific for each product.
| Part | Size | Diameter | Width | Height | Weight |
|---|---|---|---|---|---|
| Car Tire | 17" | 215 mm | 17" | 25" | 8 kg |
| Alloy Wheel | 18" | 225 mm | 18" | 24" | 7.5 kg |
| Brake Disc | 12" | 280 mm | 12" | 15" | 3 kg |
| Exhaust Pipe | Standard | 200 mm | 150 mm | 40" | 5 kg |
