Squadron 2.0 Pro Behind-the-Grille Light Kit Toyota 2025-27 4Runner Cl

The Baja Designs Squadron 2.0 Pro Behind-the-Grille Kit for the Toyota 4Runner (Non-Trd Pro/Trailhunter models) is designed as the ultimate behind-the-grille LED lighting kit. This all-in-one kit offers four Squadron 2.0 Pro LED off-road lights in multiple lens configurations, mounting brackets, hardware and wiring harness for ease of installation.

Completely redesigned from the inside out, the Squadron 2.0 Pro features next-generation optics and an impressive 5,921 lumens at 65W per light - a 21 percent increase in performance over the previous generation, with improved beam control and efficiency. The refined optical system projects a cleaner, farther-reaching, and wider beam while minimizing unwanted spill, giving 4Runner owners more usable illumination for any terrain while not affecting the stock look of the 6th Gen 4Runner. With the combination of spot and driving combo lens patterns this kit will illuminate zones 1-4 offering safety while on the trails.

New enhancements include updated lens patterns optimized for the redesigned optics, a durable 4-pin Deutsch connector, and an all-new user selectable backlight with nine selectable colors to match the 4Runner's style. Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection.

Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty, this behind-the-grille kit delivers premium performance, rugged reliability, and peace of mind for every 4Runner adventure.

Note: This kit will Not work on the 4Runner Trd Pro/Trailhunter models.

Squadron 2.0 Pro Features:

• Refined beam pattern provides greater distance, wider coverage, and reduced light spill
• User selectable backlight with 9 selectable colors to match any vehicle
• New clip-in reflectors stay secure during lens changes, improving uService
• New gasket design improves sealing and protection against the elements
• Redesigned mounting bracket allows greater vertical adjustability
• Standard 4-pin Deutsch connector for improved wiring harness durability

Specifications (Per Light):

• Lumens: 5,921
• Watts/Amps: 65W/4.7A at 13.8V
• Operational Voltage: 12-32V
• IP69K Rated

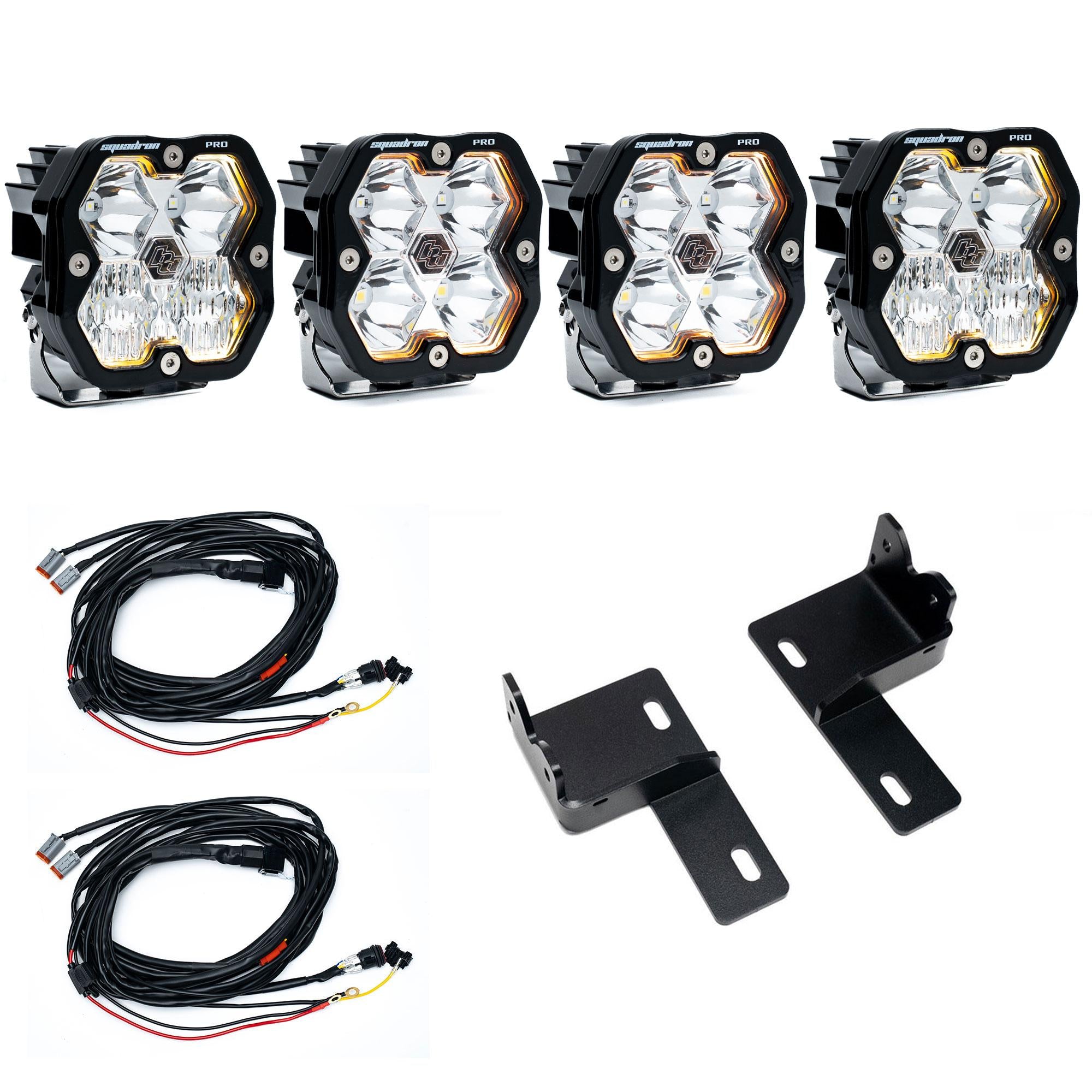

Includes:

• (2x) Squadron 2.0 Pro - Spot; Clear or Baja Amber
• (2x) Squadron 2.0 Pro - Driving Combo; Clear or Baja Amber
• (2x) Mounting Brackets
• (2x) Wiring Harness, 4-pin Deutsch 2-light
• All necessary hardware
• Note: This kit will Not work on the 4Runner Trd Pro/Trailhunter models.

The Baja Designs Advantage:

• Satisfaction Guarantee - 30-Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Safely Driving LEDs at 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

• Specifications:
  • Brightness (Lumens): 5,921 lm
  • Amperage Rating (A): 65W / 4.7A at 13.8V*
  • Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
  • Description: 9-Colors
  • Terminal Connector: Deutsch

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K

• Dimensions:
  • Depth (in.): 3.32 Inch
  • Height (in.): 3.29 Inch
  • Length (in.): 2.84 Inch
