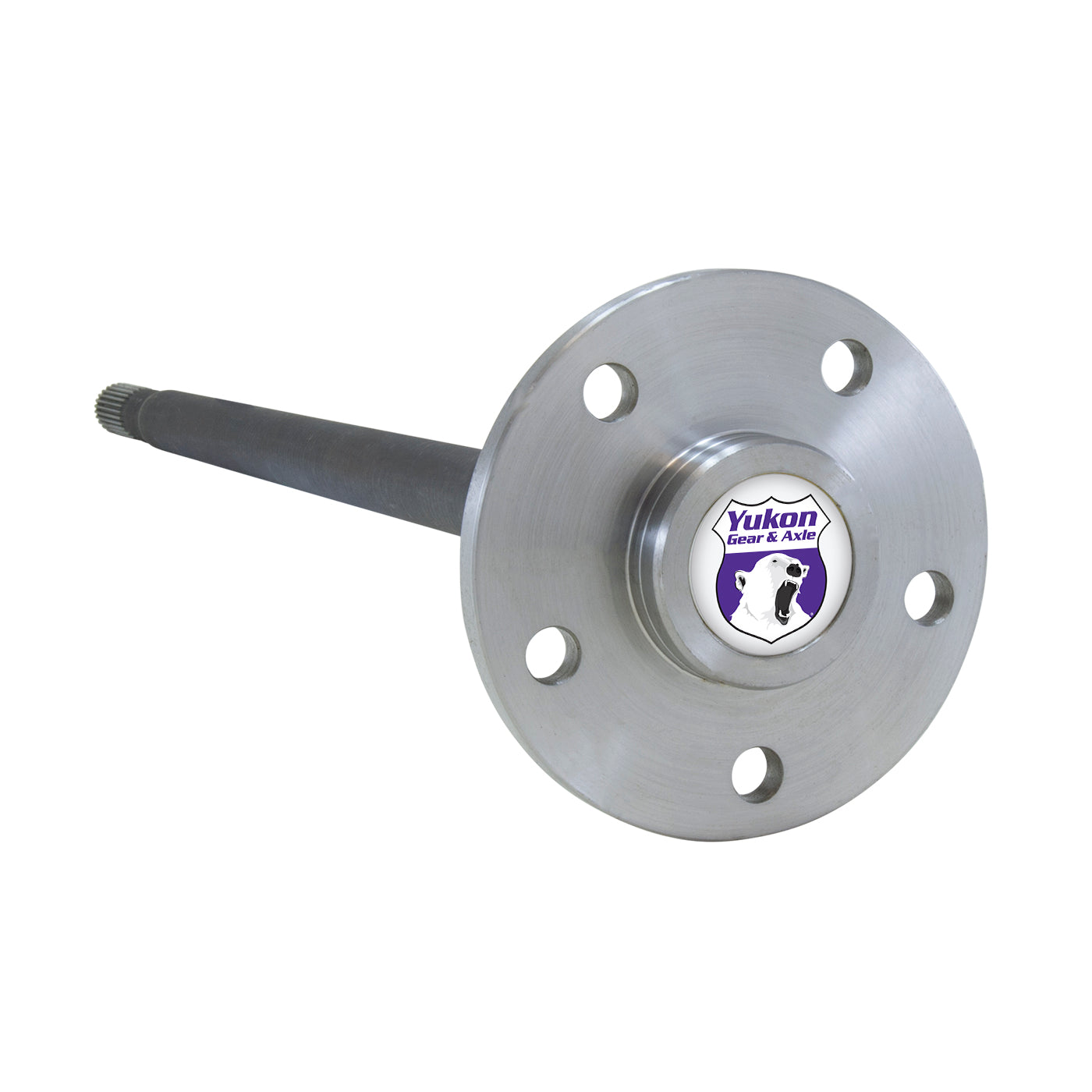

Yukon Gear & Axle Chromoly Rear Axle Model 35HD W/Drum Brakes 27 Spline Left Hand 30-11/16 Inch Long M35 HD C/Clip Drum Left Hand 30-11/16 Inch 27 Spline No ABS Ring 4340 Requires Screw In Studs Yukon Gear

Configuration: Chromoly Rear Axle Model 35HD W/Drum Brakes 27 Spline Left Hand 30-11/16 Inch Long M35 HD C/Clip Drum Left Hand 30-11/16 Inch 27 Spline No ABS Ring 4340 Requires Screw In Studs Yukon Gear

Chromoly Rear Axle Model 35HD W/Drum Brakes 27 Spline Left Hand 30-11/16 Inch Long M35 HD C/Clip Drum Left Hand 30-11/16 Inch 27 Spline No ABS Ring 4340 Requires Screw In Studs Yukon Gear

Available to purchase New stock arrives soon!

GET AN INSTALL QUOTE

Local to DFW / North Texas? NTX Offroad offers mobile installation on qualifying products.

DOES THIS FIT MY VEHICLE?

Not sure? Contact us with your vehicle's year, make, model and trim and our team can help with fitment guidance before you order.

Shipping: Orders are processed as quickly as possible. Shipment dates may vary based on product and manufacturer or distributor availability. Rates are calculated at checkout. Shipping policy

Returns: View our return policy

Warranty: Questions about manufacturer warranty coverage? Contact us

Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability. Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Features:

Fits Jeep AMC Model 35 with C-clips & drum brakes 30-11/16 inch long 27 spline Left hand side 4340 Chromoly

Details:

AAP Selling Package Quantity UOM: EA
Aap uda 12: EA
Aap uda 22: 1
Axle Nut Included: No
Axle Shaft Seal Included: No
Axle Type: Semi-Floating
Brake Hardware Included: No
CV Joints Included: No
Inboard Spline Quantity: 27
Rust Resistant Coating: No
Shaft Length: 30.68 Inch
Shaft Material: 4340 Nickel Chromoly Steel

This axle does not come with ABS ring. Re-use old ABS ring.

This axle requires screw-in axle studs (part number Yspstud-010). Double drilled flange for 5x4.5 inch & 5x5.5 inch bolt patterns.

Fitment Notes:

AMC Model 35
For Use w/Drum Brakes
w/54 Tooth/2.7 inch. ABS Ring
27 Spline
30-11/16 inch. Length
4340 Chromoly
