JKS Manufacturing 2018-2024 Jeep Wrangler JL J-Kontrol 3 Inch Lift Kit 2 Door HD Rate Coils JSPEC

Configuration: 2018-2024 Jeep Wrangler JL J-Kontrol 3 Inch Lift Kit 2 Door w/Fox 2.5 Performance Series Shocks HD Rate Coils JSPEC

2018-2024 Jeep Wrangler JL J-Kontrol 3 Inch Lift Kit 2 Door w/Fox 2.5 Performance Series Shocks HD Rate Coils JSPEC

2018-2024 Jeep Wrangler JL J-Kontrol 3 Inch Lift Kit 2 Door w/Fox 2.5 Performance Elite Series Shocks HD Rate Coils JSPEC

2018-2024 Jeep Wrangler JL J-Kontrol 3 Inch Lift Kit 2 Door w/Fox 2.0 Performance Series Shocks HD Rate Coils JSPEC

2018-2024 Jeep Wrangler JL J-Kontrol 3 Inch Lift Kit 2 Door w/Fox Adventure Series Shocks HD Rate Coils JSPEC

Available to purchase New stock arrives soon!

GET AN INSTALL QUOTE

Local to DFW / North Texas? NTX Offroad offers mobile installation on qualifying products.

DOES THIS FIT MY VEHICLE?

Not sure? Contact us with your vehicle's year, make, model and trim and our team can help with fitment guidance before you order.

Shipping: Orders are processed as quickly as possible. Shipment dates may vary based on product and manufacturer or distributor availability. Rates are calculated at checkout. Shipping policy

Returns: View our return policy

Warranty: Questions about manufacturer warranty coverage? Contact us

JKS Mfg adds specially tuned FOX 2.0 Adventure Series IFP Gas Shocks to lineup for Jeep Wrangler JL. Designed for improved damper performance in rough terrain and all around comfort and control, thee shocks take advantage of FOX's racing pedigree and offering an affordable option that packs true race proven capability.

They feature a monotube design and an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Lengths and shock tuning have been specially designed for the JKS lift kits to optimize performance.

Get more out of your lifted Jeep JL FOX Adventure Series 2.0 shocks.
Features & Benefits

Fox 2.5 Performance Series
Front/Rear Dual Rate Coil Springs (Heavy Duty) designed to great ride quality across any terrain.
Front/Rear FOX Shocks, specifically valved for this suspension system for improved performance on and off-road.
Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
Front/Rear Bump Stop Extensions to properly limit suspension up travel.
Front Control Arm Correction Brackets to flatten upper/lower control arm angles to correct caster and improve handling.

Tire Specs

Rubicon Models (all kits)
Tire: 37x12.50
Wheel: 17x9, 18x9, 20x9
Backspacing: 5 inch
Non-Rubicon Models (all kits)
Tire: 35x12.50
Wheel: 17x9, 18x9, 20x9
Backspacing: 5 inch

Other tire/wheel sizes can be used, however may require additional modifications.

Important Notes

Factory wheels cannot be reinstalled without wheel spacers
HD front springs recommended for applications with aftermarket winch/bumper combo
HD rear springs recommended for applications with rear mounted full size spare tire
Rear aftermarket driveshaft recommended for 2 Door models
Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

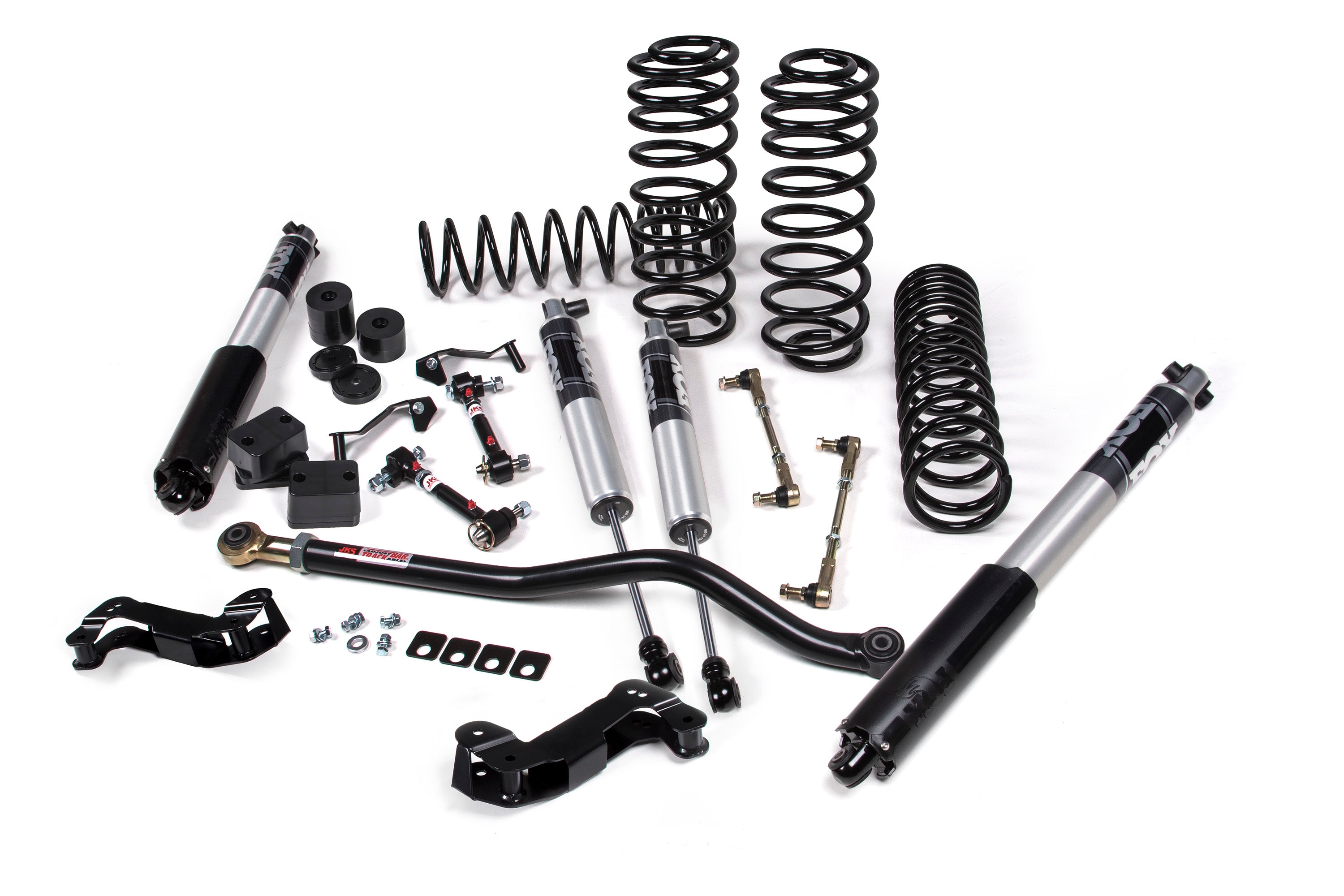

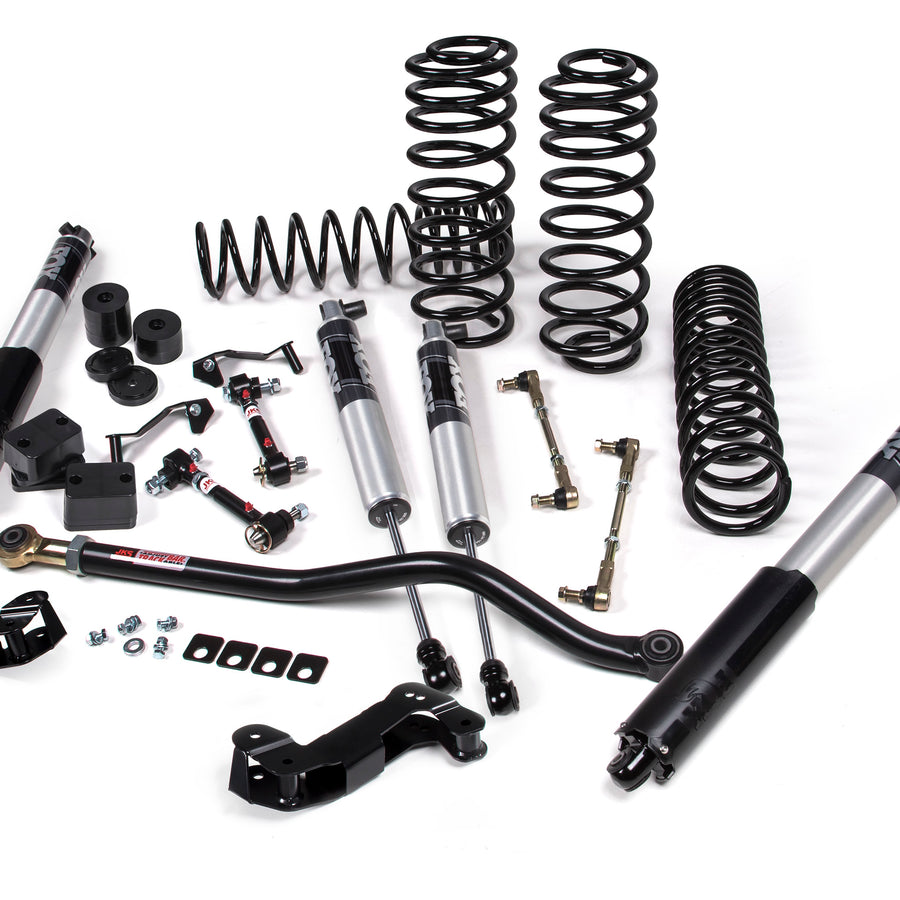

Kit Components

Includes one FOX88624155, Kit: 2018-2024 Jeep Wrangler JL, Front and Rear, 2-3.5 inch Lift, 2.5, IFP, UPC Code 814897017788
Includes one JKS6201, 2018-2024 Jeep Wrangler JL Control Arm Correction Brackets, UPC Code 814897012486
Includes one JSPEC1252, 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spr inchg Kit - HD, UPC Code 814897012295
Includes one JSPEC1258, 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spr inchg Kit - HD, UPC Code 814897012301
Includes one JSPEC1310, 2018-2024 Jeep Wrangler (JL) J-Kontrol Ma inch Box Kit, UPC Code 814897012578
