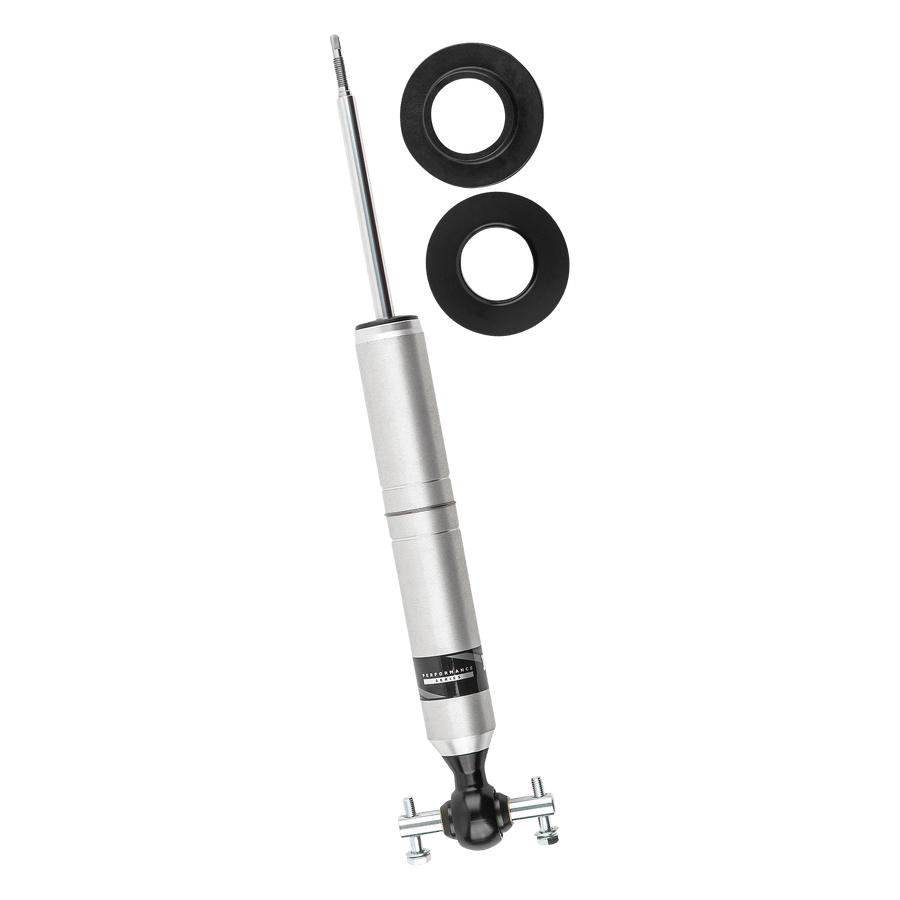

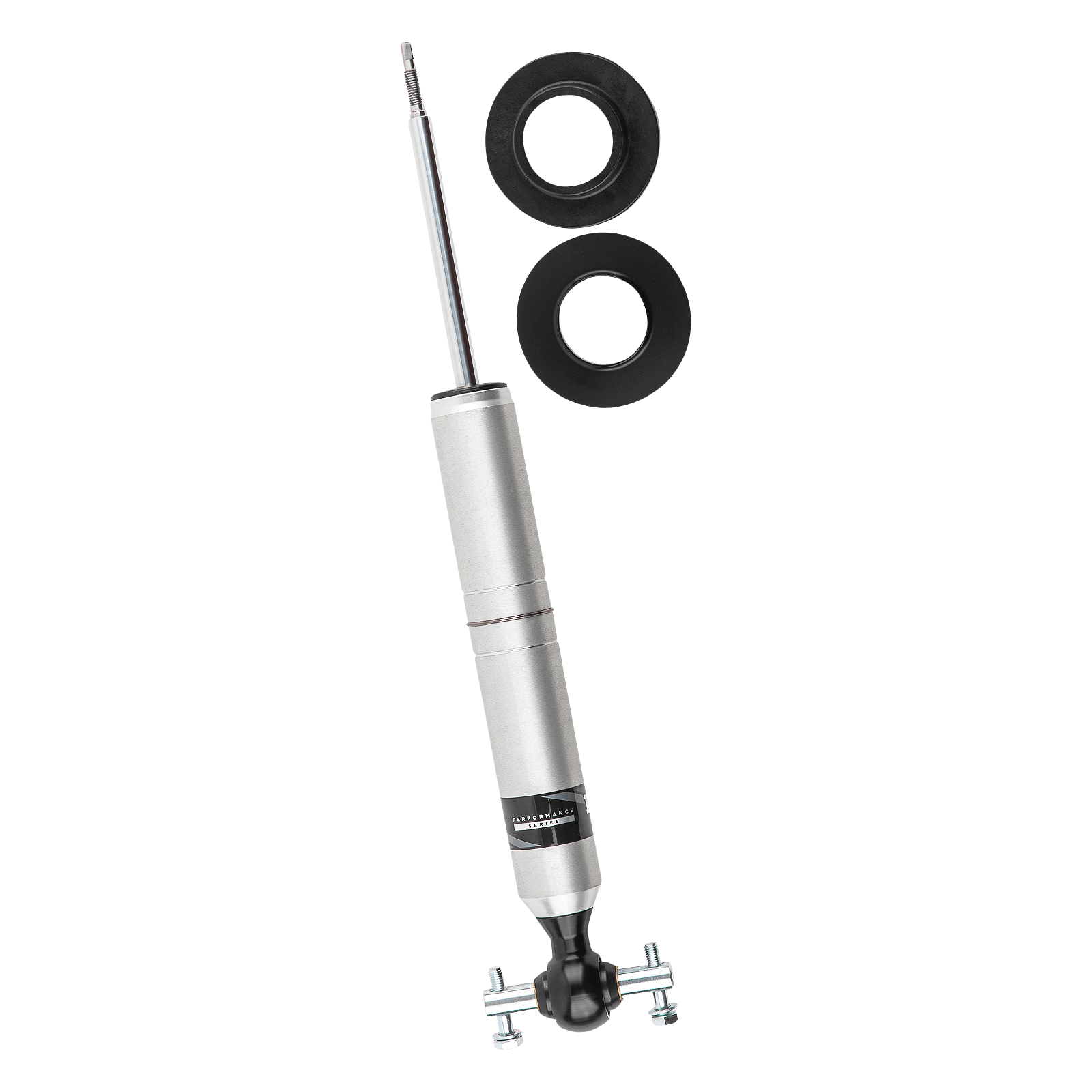

Fox Factory 06-22 Colorado/Canyon Fox 2.0 Adventure Series Steel Body Shock 2 Inch Rear 23.65 x 15.06 x 2-BP8/EB1 Fox Offroad Shocks

Configuration: 06-22 Colorado/Canyon Fox 2.0 Adventure Series Steel Body Shock 2 Inch Rear 23.65 x 15.06 x 2-BP8/EB1 Fox Offroad Shocks

06-22 Colorado/Canyon Fox 2.0 Adventure Series Steel Body Shock 2 Inch Rear 23.65 x 15.06 x 2-BP8/EB1 Fox Offroad Shocks

Available to purchase New stock arrives soon!

GET AN INSTALL QUOTE

Local to DFW / North Texas? NTX Offroad offers mobile installation on qualifying products.

DOES THIS FIT MY VEHICLE?

Not sure? Contact us with your vehicle's year, make, model and trim and our team can help with fitment guidance before you order.

Shipping: Orders are processed as quickly as possible. Shipment dates may vary based on product and manufacturer or distributor availability. Rates are calculated at checkout. Shipping policy

Returns: View our return policy

Warranty: Questions about manufacturer warranty coverage? Contact us

Built specifically to compliment your Zone lift kit, FOX's proven damping technology provides a comfortable on-road ride and predictable off-road handling in a variety of conditions.

Their monotube design uses an internal floating Piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain.

Get more out of your truck or Jeep with FOX Adventure Series 2.0 shocks. shocks.

Features and Benefits

Body Plating: Thick silver powder coat.
Body: 2.0 Smooth bore and honed seamless alloy bodies.
Bushings: Quiet nitrile rubber allows for increased suspension articulation.
Internal Reservoir: Internal IFP mono-tube Reservoir design separates shock oil from the high-pressure nitrogen.
Mounting: Direct replacement for stock and aftermarket lifts kits.
Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures.
Shaft: 5/8 inch hard chrome plated heat-treated alloy steel.
Adjustable Damping: No
Compressed Length: 15.06
Extended Length: 23.65
Finish: Silver Powdercoat
Gas Charged: Yes
Lower Mount Code: EB1
Lower Mount Type: Eyelet
Position: Vehicle Specific
Shaft Diameter: 5/8 inch
Travel Length: 8.59
Type: Smooth Body IFP
Upper Mount Code: BP8
Upper Mount Type: Bar Pin
