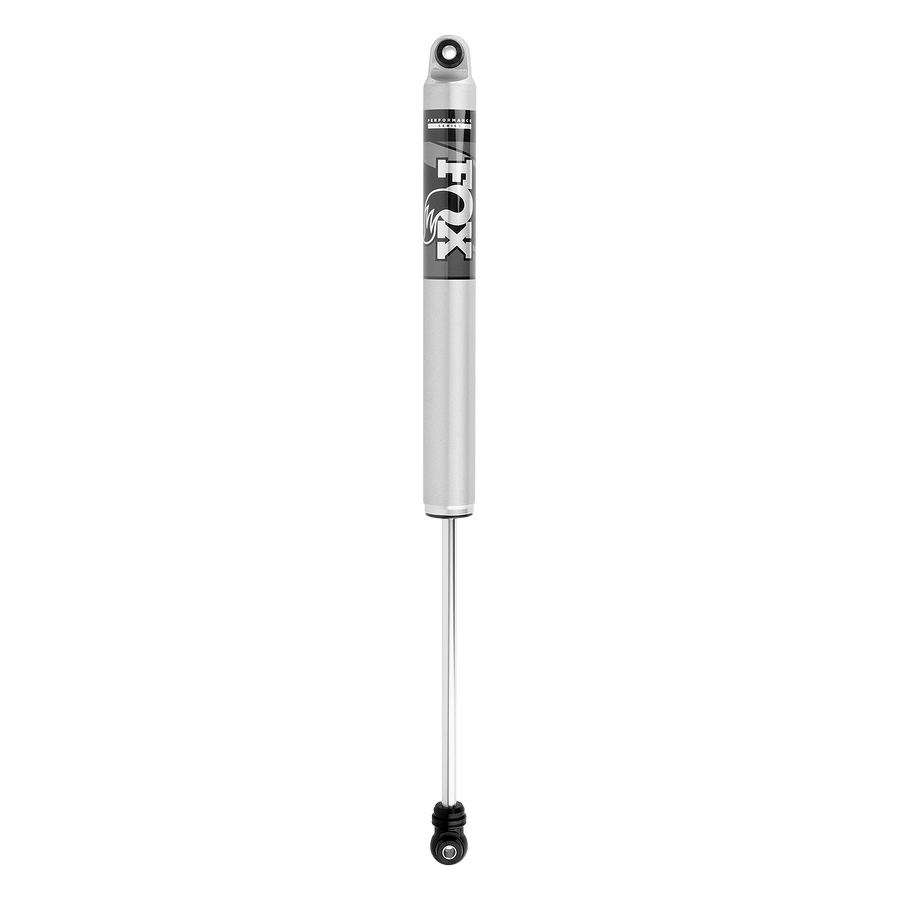

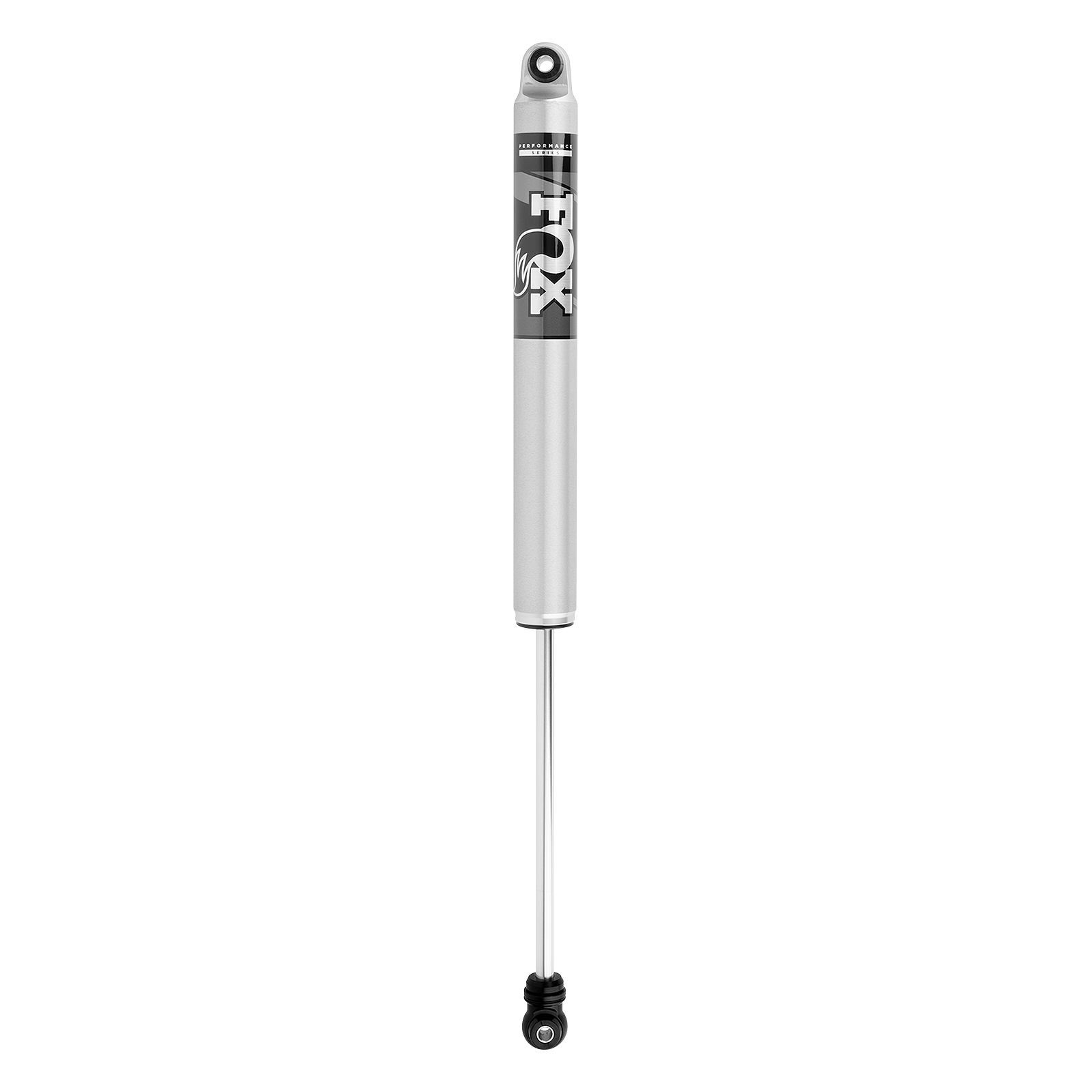

Fox Factory 04-Up Ford F-150 Rear Performance Series 2.0 Internal Floating Piston 12.6 Inch 4-6 Inch Lift Fox Offroad Shocks

Configuration: 04-Up Ford F-150 Rear Performance Series 2.0 Internal Floating Piston 12.6 Inch 4-6 Inch Lift Fox Offroad Shocks

04-Up Ford F-150 Rear Performance Series 2.0 Internal Floating Piston 12.6 Inch 4-6 Inch Lift Fox Offroad Shocks

Available to purchase New stock arrives soon!

GET AN INSTALL QUOTE

Local to DFW / North Texas? NTX Offroad offers mobile installation on qualifying products.

DOES THIS FIT MY VEHICLE?

Not sure? Contact us with your vehicle's year, make, model and trim and our team can help with fitment guidance before you order.

Shipping: Orders are processed as quickly as possible. Shipment dates may vary based on product and manufacturer or distributor availability. Rates are calculated at checkout. Shipping policy

Returns: View our return policy

Warranty: Questions about manufacturer warranty coverage? Contact us

The Performance Series 2.0 IFP smooth Body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum Body increases cooling capacity and will never rust. Inside you will find our race-proven performance Valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber.

The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision Valving.

The race developed high flow damping Piston matched with application specific Valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Part Number
985-24-193
Features

Performance Tuned For Vehicle Specific Application, Aluminum Body Dissipates Heat Faster Than Steel, IFP Separates Oil From High-Pressure Nitrogen Gas, Black Anodized CNC Machined Aluminum Components
Series Performance
Travel 12.6
Rear Lift Height 4-6
Body 2.0 inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece Body resists rust over time
Body Plating Clear-anodized for a durable finish
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8 inch hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow Piston design
Valving Application specific Valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Extended Length 32.82
Compressed Length 20.2
Top Mount ES1
Bottom Mount ES1
