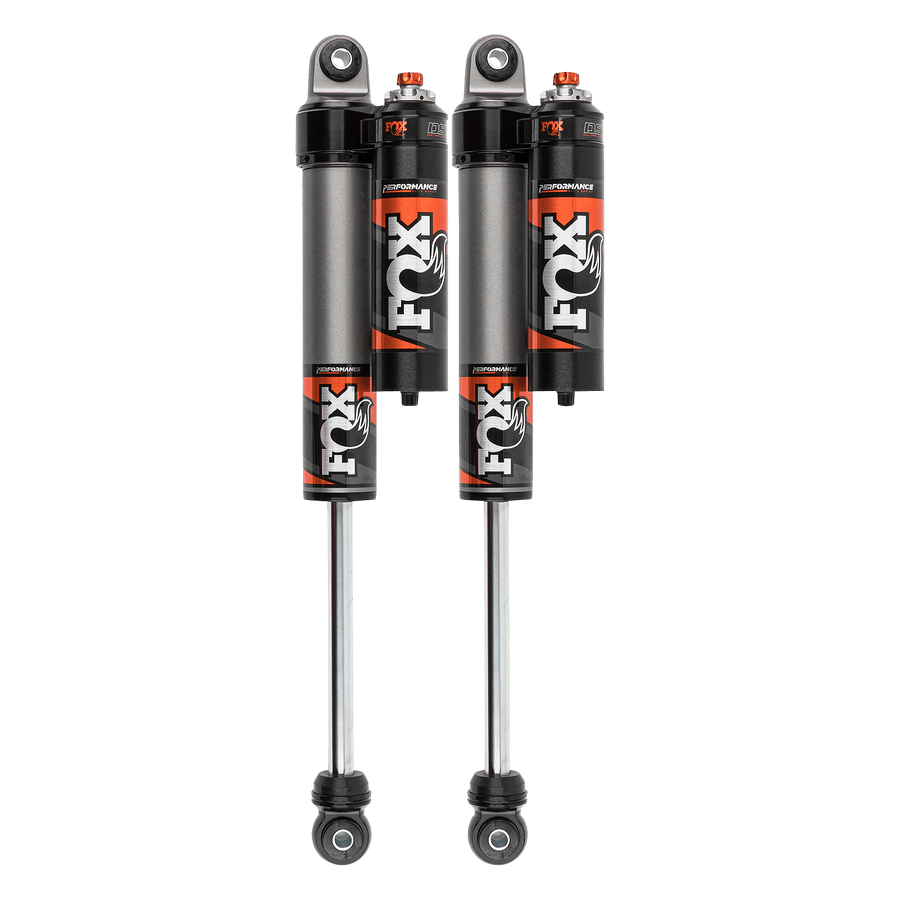

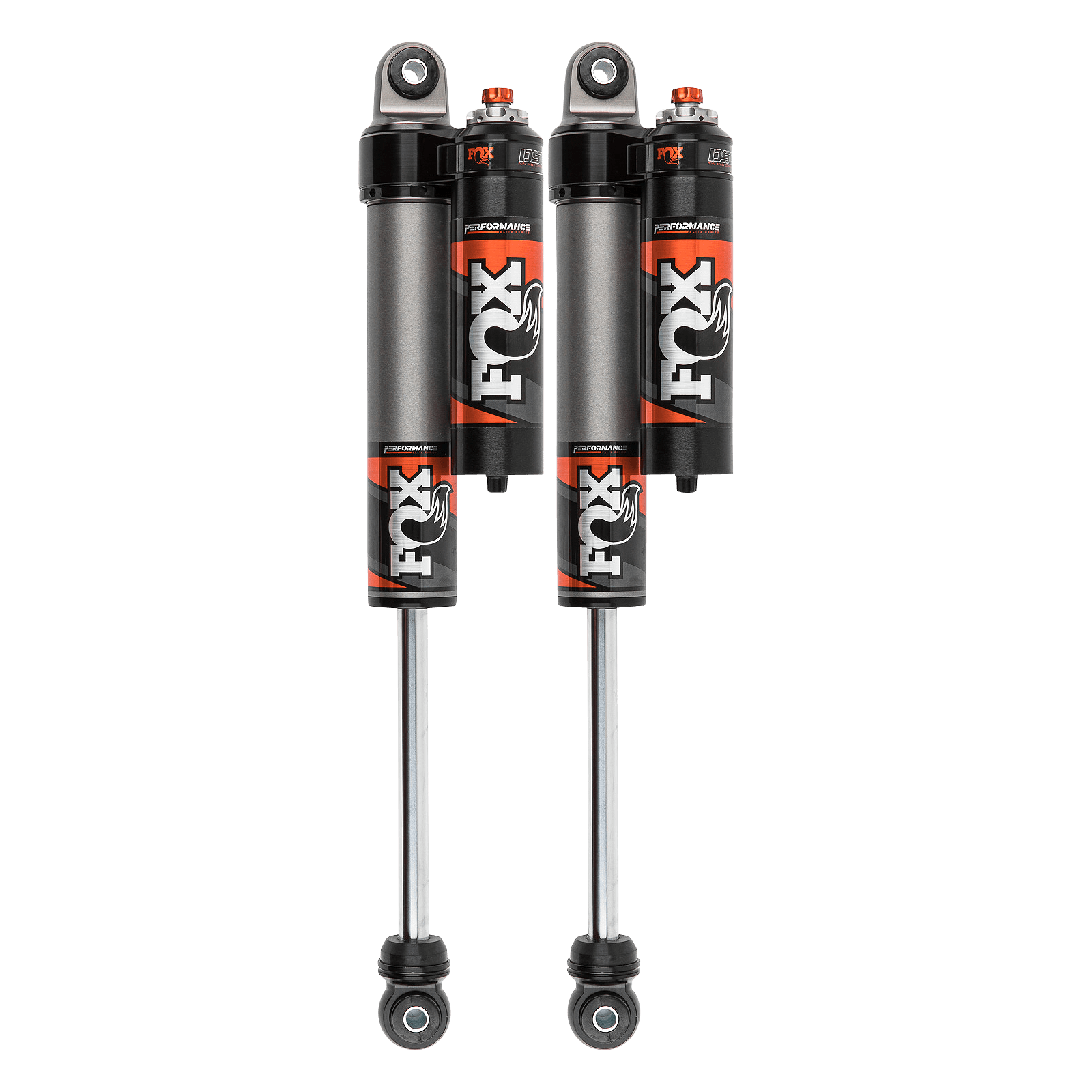

Fox Factory 2017-2023 Ford F-250/F-350 Superduty Rear Performance Elite 2.5 Piggback 2-3.5 Inch Lift Dual Speed Compression Adjuster Fox Offroad Shocks

Configuration: 2017-2023 Ford F-250/F-350 Superduty Rear Performance Elite 2.5 Piggback 2-3.5 Inch Lift Dual Speed Compression Adjuster Fox Offroad Shocks

2017-2023 Ford F-250/F-350 Superduty Rear Performance Elite 2.5 Piggback 2-3.5 Inch Lift Dual Speed Compression Adjuster Fox Offroad Shocks

Available to purchase New stock arrives soon!

GET AN INSTALL QUOTE

Local to DFW / North Texas? NTX Offroad offers mobile installation on qualifying products.

DOES THIS FIT MY VEHICLE?

Not sure? Contact us with your vehicle's year, make, model and trim and our team can help with fitment guidance before you order.

Shipping: Orders are processed as quickly as possible. Shipment dates may vary based on product and manufacturer or distributor availability. Rates are calculated at checkout. Shipping policy

Returns: View our return policy

Warranty: Questions about manufacturer warranty coverage? Contact us

FOX Performance Elite 2.5 Series shocks for the Ford Super Duty provide an excellent all-around ride in a bolt-on solution. FOX shocks are designed and engineered to increase the vehicle's capability off-road and improve stability while towing.

FOX shocks provide the versatility required to cruise your commute, manage hauls, and navigate the backcountry in comfort and control.

Features

2.5 Inch impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum Body, 7/8 Inch hard chrome-plated steel Shafts, Redundant sealing pack system, 2.5 Inch smooth bore and honed seamless alloy Reservoir with Dual Speed Compression (DSC) adjuster, Unlock all Travel available in jounce and droop positions, Maximize comfort and control through any terrain, Remote Reservoirs are mounted to clear aggressive tires at full lock, Aluminum shock bodies and external Reservoirs efficiently dissipate heat by increasing oil capacity, Larger, high flow Piston increases bottom-out resistance and damping in any environment
Series Performance Elite
Travel 12.48
Rear Lift Height 2-3.5
Body 2.5 Inch impact extruded and CNC machined 6061-T6 Type III anodized aluminum Body
Reservoir 2.5 Inch smooth bore and honed seamless alloy Reservoir with Dual Speed Compression (DSC) adjuster
Shaft 7/8 Inch hard chrome plated steel Shafts
Piston Larger, high flow Piston increases bottom-out resistance and damping in any environment
Valving Vehicle-specific Valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Extended Length 32.33
Compressed Length 19.85
Top Mount Eyelet
Bottom Mount Eyelet
