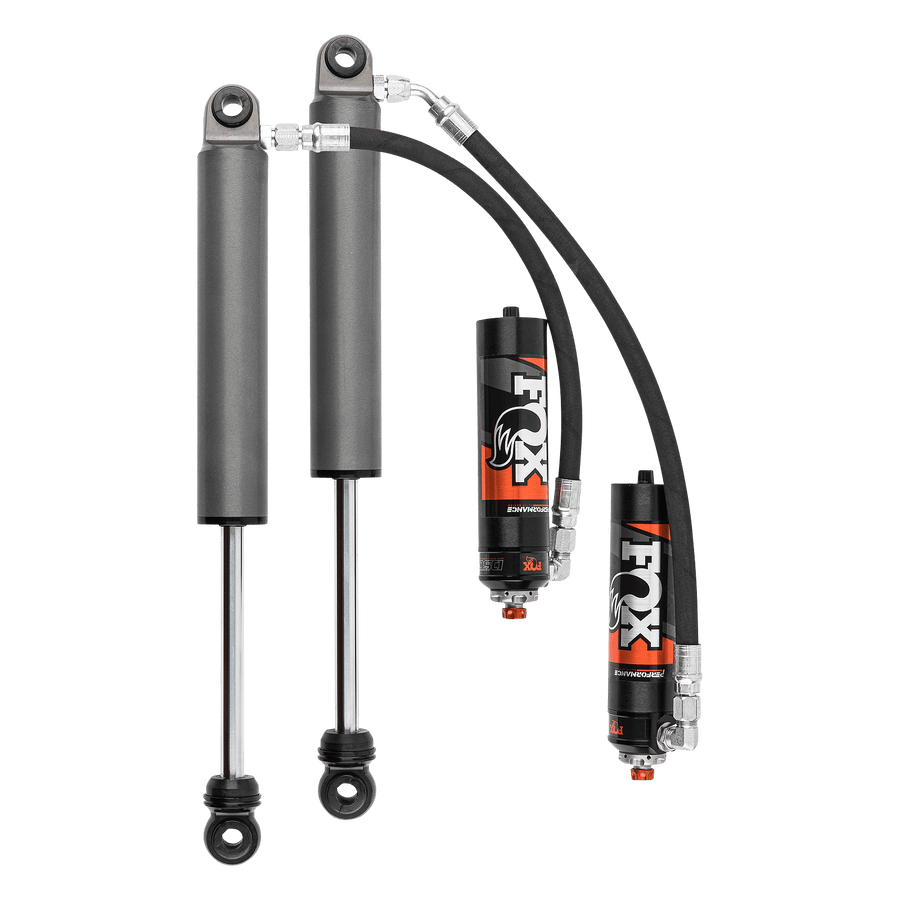

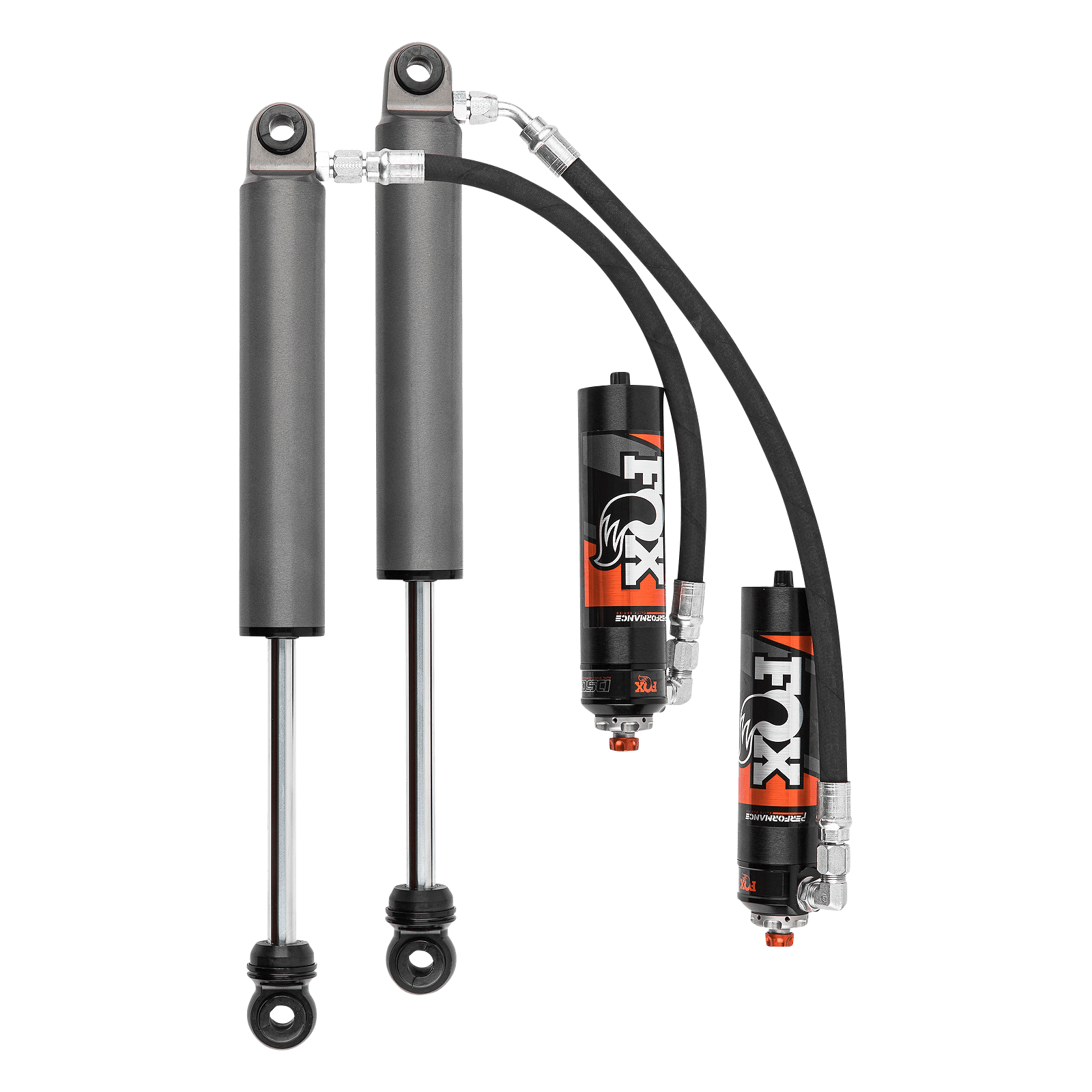

Fox Factory 2019-2024 Silverado/Sierra 1500 Rear 2.5 Truck FRS Remote Reservoir 0-2 Inch Lift Dual Speed Compression Adjuster Fox Offroad Shocks

Configuration: 2019-2024 Silverado/Sierra 1500 Rear 2.5 Truck FRS Remote Reservoir 0-2 Inch Lift Dual Speed Compression Adjuster Fox Offroad Shocks

2019-2024 Silverado/Sierra 1500 Rear 2.5 Truck FRS Remote Reservoir 0-2 Inch Lift Dual Speed Compression Adjuster Fox Offroad Shocks

Available to purchase New stock arrives soon!

GET AN INSTALL QUOTE

Local to DFW / North Texas? NTX Offroad offers mobile installation on qualifying products.

DOES THIS FIT MY VEHICLE?

Not sure? Contact us with your vehicle's year, make, model and trim and our team can help with fitment guidance before you order.

Shipping: Orders are processed as quickly as possible. Shipment dates may vary based on product and manufacturer or distributor availability. Rates are calculated at checkout. Shipping policy

Returns: View our return policy

Warranty: Questions about manufacturer warranty coverage? Contact us

Performance Elite Series 2.5 Reservoir smooth Body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see.

Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.

The external Reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs.

Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
Features

2.5 Inch impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum Body, 7/8 Inch hard chrome-plated steel Shafts, Redundant sealing pack system, 2.5 Inch smooth bore and honed seamless alloy Reservoir with Dual Speed Compression (DSC) adjuster, Unlock all Travel available in jounce and droop positions, Maximize comfort and control through any terrain, Remote Reservoirs are mounted to clear aggressive tires at full lock, Aluminum shock bodies and external Reservoirs efficiently dissipate heat by increasing oil capacity, Larger, high flow Piston increases bottom-out resistance and damping in any environment
Series Performance Elite
Travel 9.47
Rear Lift Height 0-2
Body 2.5 Inch impact extruded and CNC machined 6061-T6 hard anodized aluminum Body resists rust over time
Body Plating Hard-anodized for a durable finish
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8 Inch hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow Piston design
Valving Application specific Valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal

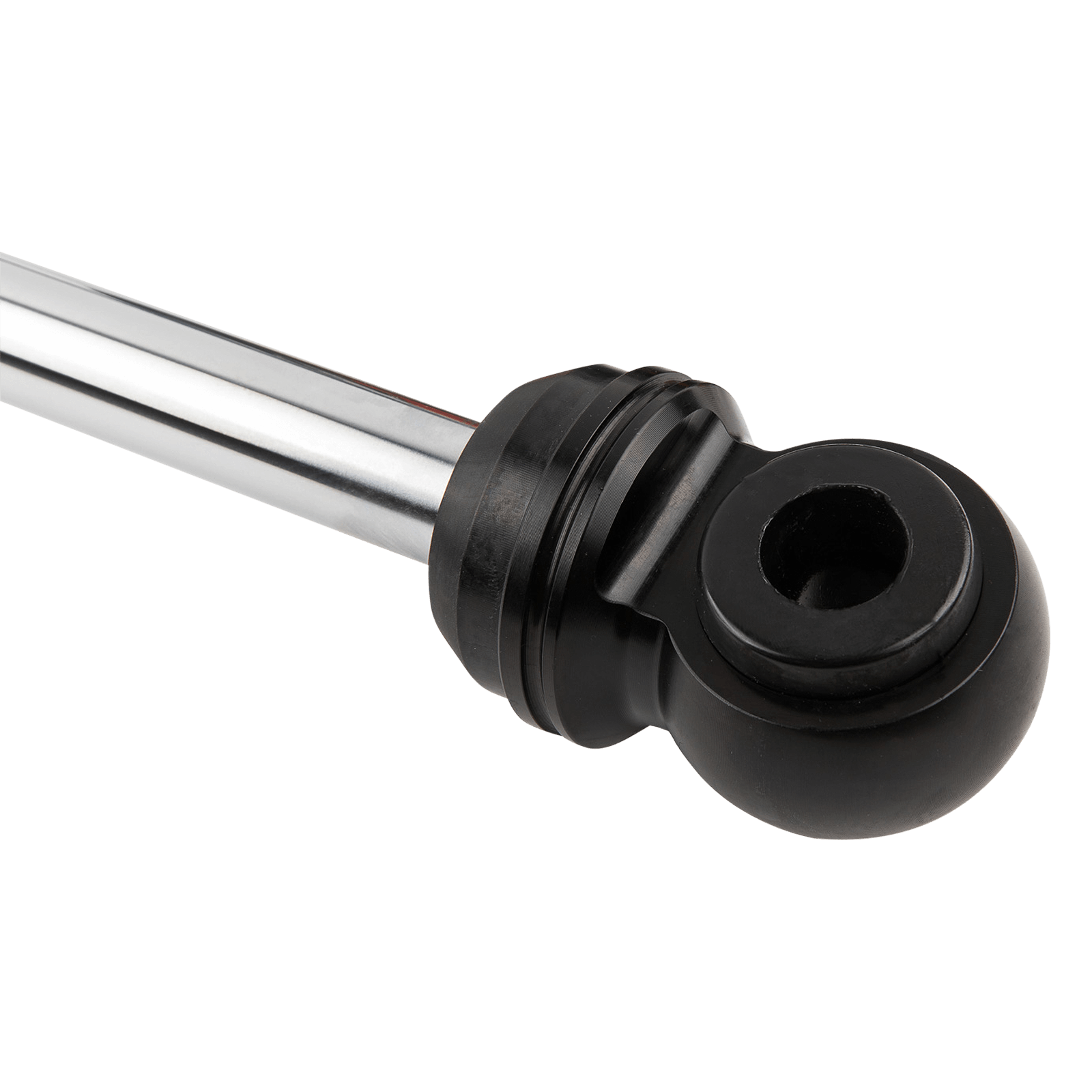

Bearings PTFE-lined, heat-treated, alloy steel spherical
Extended Length 25.57
Compressed Length 16.1
Top Mount ES6
Bottom Mount ES6
