C4-Series

Size: 10 INCH

10 INCH

15 INCH

20 INCH

25 INCH

30 INCH

40 INCH

50 INCH

Beam Pattern: SPOT

SPOT

FLOOD

COMBO

Available to purchase New stock arrives soon!

GET AN INSTALL QUOTE

Local to DFW / North Texas? NTX Offroad offers mobile installation on qualifying products.

DOES THIS FIT MY VEHICLE?

Not sure? Contact us with your vehicle's year, make, model and trim and our team can help with fitment guidance before you order.

Shipping: Orders are processed as quickly as possible. Shipment dates may vary based on product and manufacturer or distributor availability. Rates are calculated at checkout. Shipping policy

Returns: View our return policy

Warranty: Questions about manufacturer warranty coverage? Contact us

(833)325-3250

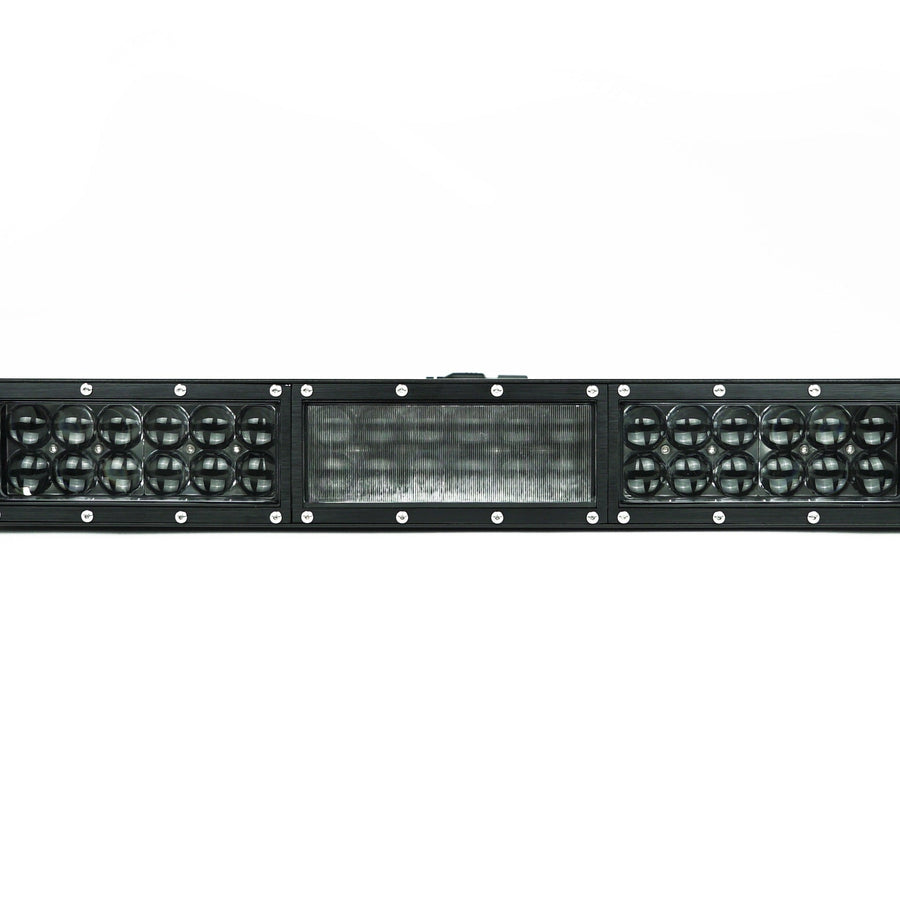

The new C4-Series is the brightest LED Bar on the market today - Guaranteed! After months of testing we have combined the 7W LEDs [strongest on market] and our Proven 4D Projector Optics to make for an unbelievable Lumen per Watt output, the amount of projection is designed for use in extreme high speed race vehicles (140+ mph). This is the first FCKLightbar rated at IP69, we have raised the weatherproof, shockproof, and impact abilities on this series due to the elements it will encounter in the toughest conditions seen on and off the road.

All C4-Series Bars are built on a Straight Housing *

7W LED chip with 4D Reflector

LUMENS:105lm/watt

Operating Voltage: 10-30V DC; Current draw change with your working Voltage and power

Waterproof rate: IP 69

Color Temperature: 6000K

Beam: Spot beam: 8 Degree/Flood beam: 20 Degree /Combo beam

Body Color: Black

Material: Diecast aluminum housing

Lens material: PC

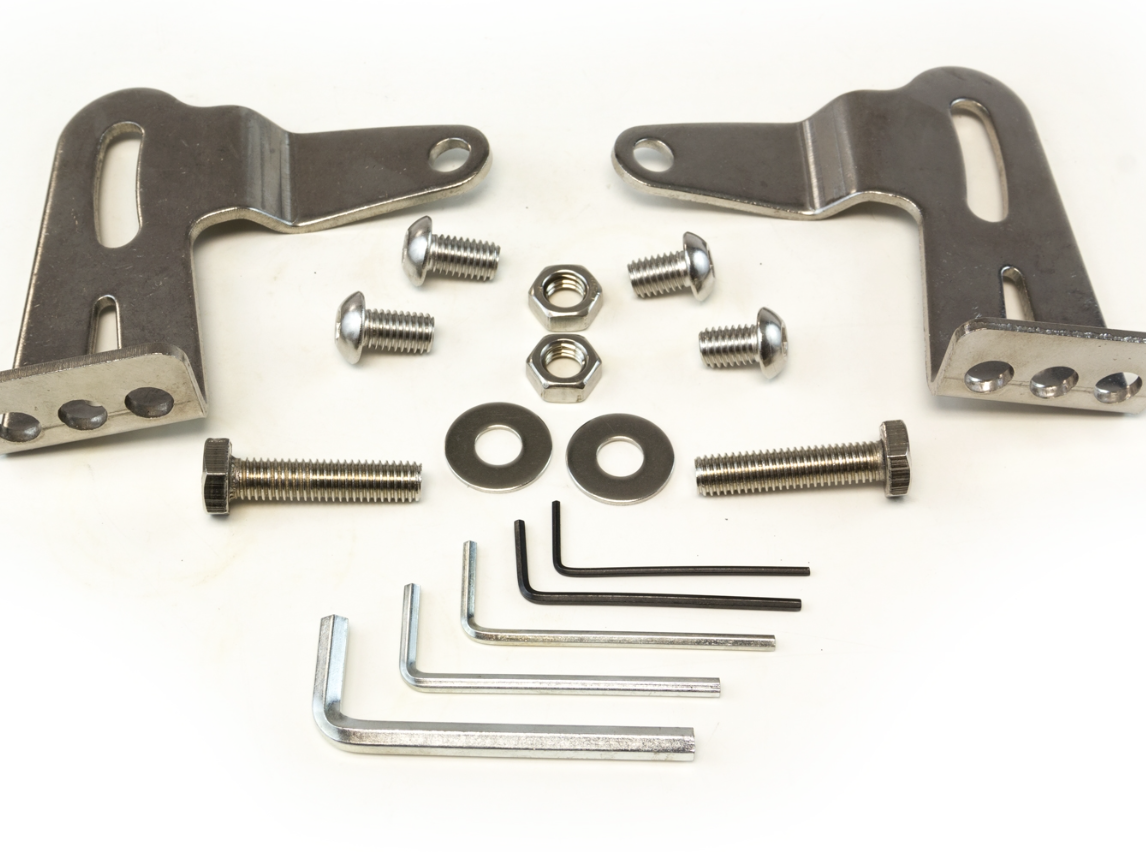

Mounting Bracket: High Performance Mounts

Performance Specs:

C4-Series [10 Inch] 84Watt / Lumen Total: 8,820

C4-Series [15 Inch] 168Watt / Lumen Total: 17,640

C4-Series [20 Inch] 252Watt / Lumen Total: 26,460

C4-Series [25 Inch] 336Watt / Lumen Total: 35,280

C4-Series [30 Inch] 420Watt / Lumen Total: 44,100

C4-Series [40 Inch] 504Watt / Lumen Total: 52,920

C4-Series [50 Inch] 672Watt / Lumen Total: 70,560

FCKLightbars Lifetime Warranty on all Products protects your investment against LED Failure, Condensation, Flickering, and manufacture defects.
